1. Description

The UTXO set represents the current state of ownership of all Satoshi tokens in existence. Except for Coinbase transactions, every other valid transaction spends at least one UTXO and creates zero or more new UTXOs, plus zero or more unspendable outputs. The UTXOs that are being ‘spent’ come from previously successful transactions, and these may be recorded in the current or a previous block. An unspent output may be created and spent in a few milliseconds, or it may remain unspent for decades, meaning that the unspent outputs must persist for as long as they remain unspent.

The UTXO Store is responsible for tracking spendable UTXOs (the UTXO set), based on the longest honest chain-tip in the network. These are UTXOs that can be used as inputs in new transactions. The UTXO Store is an internal datastore used by some of the services, such as the Asset Server, the TX Validator and the Block Assembly. The main purpose of this store is to maintain the UTXO data on behalf of other micro-services.

It handles the core functionalities of the UTXO Store:

• Health: Check the health status of the UTXO store service.
• Get: Retrieve a specific UTXO.
• GetMeta: Retrieve a specific UTXO meta data.
• Create: Add new UTXOs to the store.
• Spend/Unspend: Mark UTXOs as spent or reverse such markings, respectively.
• Delete: Remove UTXOs from the store.
• Block Height Management: Set and retrieve the current blockchain height, which can be crucial for determining the spendability of certain UTXOs based on locktime conditions.
• FreezeUTXOs / UnFreezeUTXOs: Mark UTXOs as frozen or unfrozen, in scenarios involving alert systems or temporary holds on specific UTXOs.
• ReAssignUTXO: Reassign a UTXO to a different owner.

Principles:

• All operations are atomic.
• All data is shared across servers with standard sharing algorithms.
• In production, the data is stored in a Master and Replica configuration.
• No centralised broker - all clients know where each hash is stored.
• No cross-transaction state is stored.

The UTXO Store includes functionality to freeze and unfreeze UTXOs, as well as re-assign them.

• BSV is the only blockchain that allows legal recourse for lost asset (token) recovery to legally rightful owners by design. The Alert System can also freeze assets based on court injunctions and legal notices.
• Teranode must be able to re-assign (a set of) UTXO(s) to another (specified) address at a specified block height.

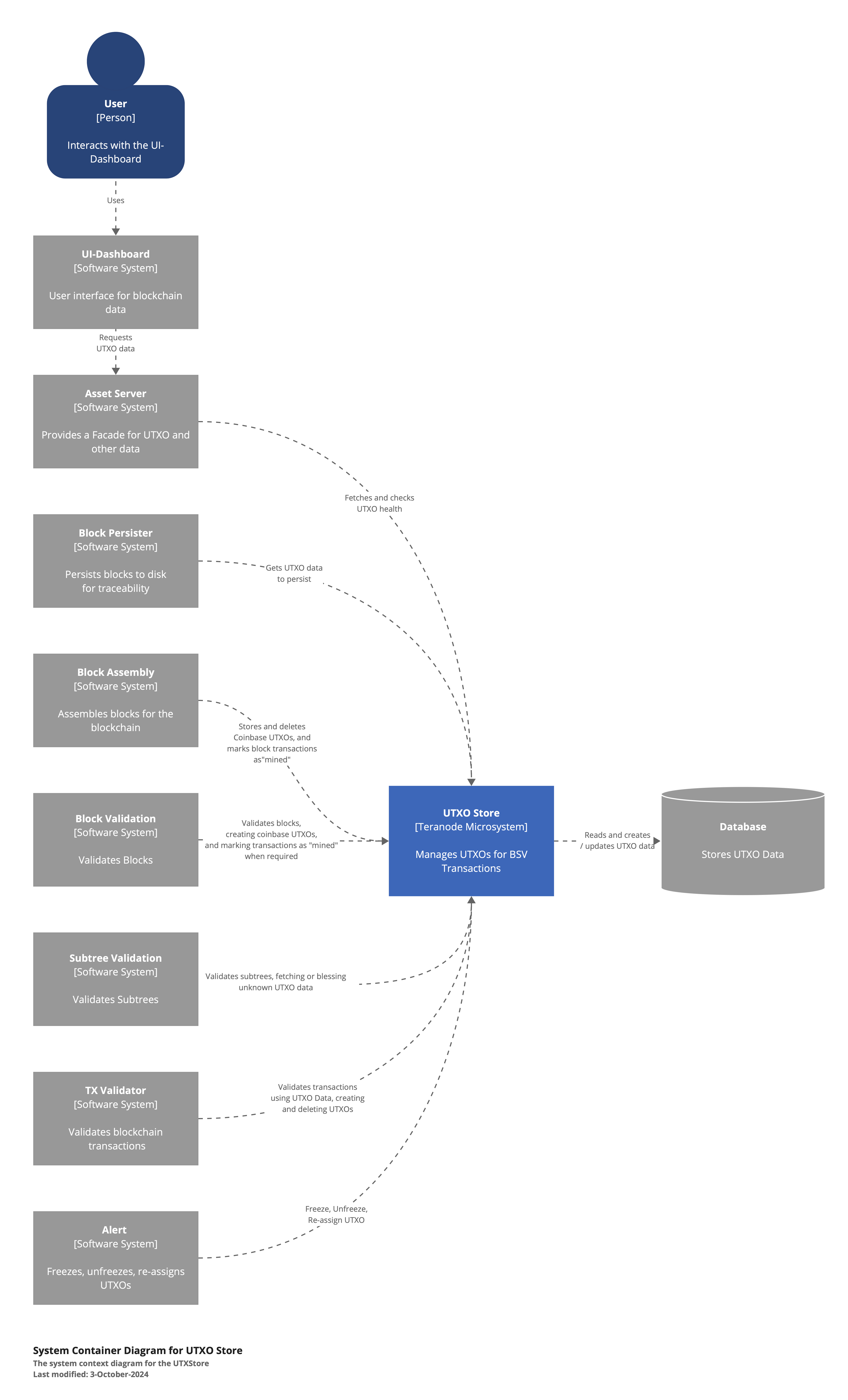

2. Architecture

The UTXO Store is a micro-service that is used by other micro-services to retrieve or store / modify UTXOs.

The UTXO Store uses a number of different datastores, either in-memory or persistent, to store the UTXOs.

The UTXO store implementation is consistent within a Teranode node (every service connects to the same specific implementation), and it is defined via settings (utxostore), as it can be seen in the following code fragment (main.go):

func getUtxoStore(ctx context.Context, logger ulogger.Logger) utxostore.Interface {
    if utxoStore != nil {
        return utxoStore
    }

    utxoStoreURL, err, found := gocore.Config().GetURL("utxostore")
    if err != nil {
        panic(err)
    }
    if !found {
        panic("no utxostore setting found")
    }
    utxoStore, err = utxo_factory.NewStore(ctx, logger, utxoStoreURL, "main")
    if err != nil {
        panic(err)
    }

    return utxoStore
}

The following datastores are supported (either in development / experimental or production mode):

1. Aerospike.

2. Memory (In-Memory Store).

3. Sql (Postgres and SQLLite).

4. Nullstore.

Notice how SqlLite and the In-Memory store are in-memory, while Aerospike and Postgres are persistent (and shared with other services).

More details about the specific stores can be found in the Technology section.

3. UTXO: Data Model

3.1. What is an UTXO?

The Teranode UTXO is no different from Bitcoin UTXO. The following is a description of the Bitcoin UTXO model, focusing on the BSV implementation:

• Transaction Outputs: When a transaction occurs on the blockchain, it creates "transaction outputs," which are essentially chunks of cryptocurrency value. Each output specifies an amount and a condition under which it can be spent (a cryptographic script key that the receiver owns).

Under the external library github.com/ordishs/go-bt/output.go, we can see the structure of a transaction output.

type Output struct {
    Satoshis      uint64          `json:"satoshis"`
    LockingScript *bscript.Script `json:"locking_script"`
}

Components of the Output struct:

1. Satoshis (uint64):

   • The amount of BSV cryptocurrency associated with this output.
   • The unit "Satoshis" refers to the smallest unit of Bitcoin (1 Bitcoin = 100 million Satoshis).

2. LockingScript (*bscript.Script):

   • This field represents the conditions that must be met to spend the Satoshis in this output.
   • The LockingScript, often referred to as the "scriptPubKey" in Bitcoin's technical documentation, is a script written in Bitcoin's scripting language.
   • This script contains cryptographic conditions to unlock the funds.

Equally, we can see how a list of outputs is part of a transaction (github.com/ordishs/go-bt/tx.go):

type Tx struct {
    Inputs   []*Input  `json:"inputs"`
    Outputs  []*Output `json:"outputs"`
    Version  uint32    `json:"version"`
    LockTime uint32    `json:"locktime"`
}

• Unspent Transaction Outputs (UTXOs): A UTXO is a transaction output that hasn't been used as an input in a new transaction.

When a transaction occurs, it consumes one or more UTXOs as inputs and creates new UTXOs as outputs. The sum of the input UTXOs represents the total amount of Bitcoin being transferred, and the outputs represent the distribution of this amount after the transaction.

To "own" bitcoins means to control UTXOs on the blockchain that can be spent by the user (i.e., the user has the private key to unlock these UTXOs).

When a user creates a new transaction, the transaction references these UTXOs as inputs, proving his ownership by fulfilling the spending conditions set in these UTXOs (signing the transaction with the user's private key).

Independent UTXOs can be processed in parallel, potentially improving the efficiency of transaction validation.

UTXOs now have an additional state: frozen. A frozen UTXO cannot be spent until it is unfrozen.

To know more about UTXOs, please check https://protocol.bsvblockchain.org/transaction-lifecycle/transaction-inputs-and-outputs.

3.2. How are UTXOs stored?

When storing the UTXOs (Unspent Transaction Outputs) associated to a given Tx in Aerospike (see stores/utxo/aerospike/aerospike.go, our primary persisted datastore, the following information is kept:

1. Inputs: The transaction inputs, represented as a slice of byte arrays (inputs bin). Each input includes the previous transaction output it spends from, as well as additional data such as the script and satoshis amount.

2. Outputs: The transaction outputs, represented as a slice of byte arrays (outputs bin). Each output contains the value in satoshis and the locking script.

3. Version: The version number of the transaction (version bin).

4. Fee: The fee associated with the transaction (fee bin).

5. Size in Bytes: The size of the transaction in bytes (sizeInBytes bin).

6. UTXOs: A map representing the UTXOs associated with this transaction (utxos bin). The keys are the UTXO hashes, and the values are empty strings initially. The values will be populated, once the UTXO is spent, with the spending Tx Id.

7. Number of UTXOs: The number of UTXOs in the utxos map (recordUtxos bin).

8. Spent UTXOs: A counter for the number of UTXOs that have been spent (spentUtxos bin).

9. Block IDs: The IDs of the blocks that include this transaction (blockIDs bin).

10. Coinbase Flag: A boolean indicating whether this transaction is a coinbase transaction (isCoinbase bin).

These bins collectively store the necessary data to track the transaction's inputs, outputs, and its state within the blockchain.

Once the UTXO is spent, the spending tx_id will be saved.

• To compute the hash of the key, the caller must know the complete data and calculate the hash before calling the API.

• The hashing logic can be found in UTXOHash.go:

func UTXOHash(previousTxid *chainhash.Hash, index uint32, lockingScript []byte, satoshis uint64) (*chainhash.Hash, error) {
    if len(lockingScript) == 0 {
        return nil, fmt.Errorf("locking script is nil")
    }

    if satoshis == 0 {
        return nil, fmt.Errorf("satoshis is 0")
    }

    utxoHash := make([]byte, 0, 256)
    utxoHash = append(utxoHash, previousTxid.CloneBytes()...)
    utxoHash = append(utxoHash, bt.VarInt(index).Bytes()...)
    utxoHash = append(utxoHash, lockingScript...)
    utxoHash = append(utxoHash, bt.VarInt(satoshis).Bytes()...)

    hash := crypto.Sha256(utxoHash)
    chHash, err := chainhash.NewHash(hash)
    if err != nil {
        return nil, err
    }

    return chHash, nil
}

• The existence of the key confirms the details of the UTXO are the same as what the caller has.

3.3. UTXO Meta Data

The Data struct (stores/utxo/meta/data.go), referred moving forward as UTXO Meta Data, provides a convenience structure to retrieve meta data associated to a transaction out of the UTXO Store.

type Data struct {
    Tx             *bt.Tx           `json:"tx"`
    ParentTxHashes []chainhash.Hash `json:"parentTxHashes"`
    BlockIDs       []uint32         `json:"blockIDs"`
    Fee            uint64           `json:"fee"`
    SizeInBytes    uint64           `json:"sizeInBytes"`
    IsCoinbase     bool             `json:"isCoinbase"`
    LockTime       uint32           `json:"lockTime"` // lock time can be different from the transaction lock time, for instance in coinbase transactions
}

This is widely used by all services, given it is a comprehensive set of data going well beyond the extended Tx data set.

To know more about the UTXO data model, please read more here.

4. Use Cases

4.1. Asset Server

1. The UI Dashboard sends a request to the AssetService for UTXO data.
2. The AssetService forwards this request to the UTXO Store.
3. The UTXO Store interacts with the underlying Datastore implementation to fetch the requested UTXO data and check the health status of the store.
4. The Datastore implementation returns the UTXO data and health status to the UTXO Store.
5. The UTXO Store sends this information back to the AssetService.
6. Finally, the AssetService responds back to the UI Dashboard.

To know more about the AssetService, please check its specific service documentation.

4.2. Block Persister

1. The Block Persister service persists the block data to disk. As part of this job, it retrieves the utxo meta data for each Tx in each subtree in each block, and dumps it to the storage.

2. Depending on the settings Block Persister operates under, the persister will request the utxo meta data in batches or one by one. In general, and depending on the specific UTXO store implementation, the batched processing is more efficient.

4.3. Block Assembly

Coinbase Transaction creation (UTXO step):

1. The Block Assembly service (see SubtreeProcessor.go, processCoinbaseUtxos method) creates a new Coinbase transaction.
2. The Block Assembly service sends a request to the UTXO Store to store the Coinbase UTXO.
3. The UTXO Store interacts with the underlying Datastore implementation to store the Coinbase UTXO.

Coinbase Transaction deletion (UTXO step):

1. The Block Assembly service (see SubtreeProcessor.go, `` method) deletes the Coinbase transaction. This is done when blocks are reorganised and previously tracked coinbase transactions lose validity.
2. The Block Assembly service sends a request to the UTXO Store to delete the Coinbase UTXO.
3. The UTXO Store interacts with the underlying Datastore implementation to delete the Coinbase UTXO.

To know more about the Block Assembly, please check its specific service documentation.

4.4. Block Validation

1. The Block Validator service validates the block by checking the integrity of the transactions and UTXOs.
2. Once a block is validated, the Block Validator service stores the coinbase tx and their associated UTXO data in the UTXO Store.
3. The UTXO Store interacts with the underlying Datastore implementation to store the coinbase tx and UTXO data.

4.5. Subtree Validation

In order to validate subtrees, the Subtree Validation service will retrieve the UTXO meta data for each tx in the subtree. This is done by sending a request to the UTXO Store, either in batches or one by one, depending on the settings.

4.6. Transaction Validator

The Transaction Validator uses the UTXO Store to perform a number of UTXO related operations:

1. Obtain the current block height from the UTXO Store.
2. Mark a UTXO as spent. If needed, it can also request to unspend (revert) a UTXO.
3. Store and delete new UTXOs.
4. Retrieve previous outputs UTXO data.

When marking a UTXO as spent, the store will check if the UTXO is known (by its hash), and whether it is spent or not. If it is spent, we will return one response message or another depending on whether the spending tx_id matches. See here:

Also notice how no transaction can be spent if frozen.

On the other hand, we can see the process for unspending an UTXO here:

To know more about the Transaction Validator, please check its specific service documentation.

4.7. UTXO Batch Processing and External Storage mode

Aerospike is the primary datastore for the UTXO store. However, to overcome Aerospike's record size limitation of 1MB, the system implements an external storage mechanism for large transactions.

If a transaction is too large to fit in a single Aerospike record (indicated by a RECORD_TOO_BIG error), or if the system is configured to externalize all transactions, the UTXO store will store the full transaction data in an external storage (typically AWS S3, but any external storage can be used).

In such cases, the full transaction data is stored externally, while metadata and UTXOs are still stored in Aerospike, potentially across multiple records. The Aerospike record will have an external flag set to true, indicating that the full transaction data is stored externally.

When the UTXO data is needed, the system will first check the Aerospike record. If the `external flag is true, it will then retrieve the full transaction data from the external storage using the transaction hash as a key.

4.8. Alert System and UTXO Management

The UTXO Store supports advanced UTXO management features, which can be utilized by an alert system.

1. Freezing UTXOs: The alert system can request to freeze specific UTXOs, preventing them from being spent.

   • Checks if the UTXO exists
   • If the UTXO is already spent, it returns "SPENT"
   • If the UTXO is already frozen, it returns "FROZEN"
   • Otherwise, it marks the UTXO as frozen by setting its spending TxID to 32 'FF' bytes

2. Unfreezing UTXOs: Previously frozen UTXOs can be unfrozen, allowing them to be spent again.

   • Checks if the UTXO exists and is frozen
   • If frozen, it removes the freeze mark
   • If not frozen, it returns an error

3. Reassigning UTXOs: UTXOs can be reassigned to a new transaction output, but only if they are frozen first.

   • Verifies the UTXO exists and is frozen
   • Updates the UTXO hash to the new value
   • Sets spendable block height to current + ReAssignedUtxoSpendableAfterBlocks
   • Logs the reassignment for audit purposes

5. Technology

5.1. Language and Libraries

1. Go Programming Language (Golang):

A statically typed, compiled language known for its simplicity and efficiency, especially in concurrent operations and networked services. The primary language used for implementing the service's logic.

1. Bitcoin Transaction (BT) GoLang library: github.com/ordishs/go-bt/ - a full featured Bitcoin transactions and transaction manipulation/functionality Go Library.

5.2. Data Stores

The following datastores are supported (either in development / experimental or production mode):

1. Aerospike:

   • A high-performance, NoSQL distributed database.
   • Suitable for environments requiring high throughput and low latency.
   • Handles large volumes of UTXO data with fast read/write capabilities.
   • Aerospike is the reference datastore. Teranode has been guaranteed to process 1 million tps with Aerospike.
   • Aerospike records can contain up to 1024 bytes.
   • For more information, please refer to the official Aerospike documentation: https://aerospike.com.

2. Memory (In-Memory Store):

   • Stores UTXOs directly in the application's memory.
   • Offers the fastest access times but lacks persistence; data is lost if the service restarts.
   • Useful for development or testing purposes.

3. Sql:

   • A SQL database, currently Postgresql and SqlLite are in scope, can be used to store UTXOs.
   • Provides a balance of performance and persistence, suitable for medium to large-scale applications.
   • Offers the ability to query and analyze UTXO data using SQL.

4. Nullstore:

   • A dummy or placeholder implementation, used for testing (when no actual storage is needed).
   • Can be used to mock UTXO store functionality in a development or test environment.

Implementation Choice Considerations:

• The choice of implementation depends on the specific requirements of the BSV node, such as speed, data volume, persistence, and the operational environment.
• Memory-based stores are typically faster but may require additional persistence mechanisms.
• Databases like Aerospike provide a balance of speed and persistence, suitable for larger, more complex systems.
• Nullstore is more appropriate for testing, development, or lightweight applications.

5.3. Data Purging

Stored data is automatically purged a certain TTL (Time To Live) period after it is spent. This is done to prevent the datastore from growing indefinitely and to ensure that only relevant data (i.e. data that is spendable or recently spent) is kept in the store.

6. Directory Structure and Main Files

UTXO Store Package Structure (stores/utxo)
├── Interface.go                    # Defines the interface for the UTXO Store
├── _factory                        # Contains different store implementations
│   ├── aerospike.go                # Factory setup for Aerospike UTXO Store
│   ├── memory.go                   # Factory setup for in-memory UTXO Store
│   └── utxo.go                     # Common UTXO store setup
├── aerospike                       # Aerospike-specific UTXO Store implementation
│   ├── aerospike.go                # Main Aerospike UTXO store implementation
│   │   └── Store                   # Struct representing the Aerospike UTXO store
│   │       ├── url                 # The Aerospike URL
│   │       ├── client              # The Aerospike client instance
│   │       ├── namespace           # The Aerospike namespace used
│   │       ├── setName             # The set name for storing UTXOs
│   │       ├── expiration          # The expiration time for UTXO records
│   │       ├── blockHeight         # The current blockchain height
│   │       ├── logger              # The logger instance
│   │       ├── storeBatcher        # Batcher for store operations
│   │       ├── getBatcher          # Batcher for get operations
│   │       ├── spendBatcher        # Batcher for spend operations
│   │       ├── lastSpendBatcher    # Batcher for last spend operations
│   │       ├── New                 # Initializes a new Aerospike UTXO Store
│   │       ├── sendStoreBatch      # Processes and stores a batch of transactions
│   │       ├── sendGetBatch        # Retrieves a batch of UTXO data
│   │       ├── sendSpendBatchLua   # Processes a batch of UTXO spend operations using Lua script
│   │       ├── SetBlockHeight      # Sets the current block height
│   │       ├── GetBlockHeight      # Retrieves the current block height
│   │       ├── Health              # Checks the health of the Aerospike UTXO store service
│   │       ├── GetSpend            # Retrieves the spend status of a UTXO
│   │       ├── GetMeta             # Retrieves metadata for a specific UTXO
│   │       ├── Get                 # Retrieves specific UTXO data
│   │       ├── Create              # Adds new UTXOs to the store
│   │       ├── Spend               # Marks UTXOs as spent
│   │       ├── Unspend             # Reverses the spent status of UTXOs
│   │       ├── SetMinedMulti       # Sets multiple transactions as mined
│   │       ├── SetMined            # Sets a transaction as mined
│   │       └── Delete              # Removes UTXOs from the store
│   ├── aerospike_server_test.go    # Tests for the Aerospike UTXO store
│   ├── alert_system.go             # Aerospike alert system implementation
│   ├── alert_system_test.go        # Tests for the Aerospike alert system
│   ├── metrics.go                  # Metrics collection for Aerospike operations
│   └── spend.lua                   # Lua script for batch spend operations
├── memory                          # In-memory UTXO Store implementation
│   └── memory.go                   # Main in-memory UTXO store implementation
├── meta                            # Metadata handling for UTXOs
│   ├── data.go                     # Defines metadata structures for UTXOs
│   └── data_test.go                # Tests for UTXO metadata
├── nullstore                       # Null UTXO Store implementation for testing
│   └── nullstore.go                # Main nullstore implementation
├── sql                             # SQL UTXO Store implementation
│   └── sql.go                      # Main sql implementation (provides support for SqlLite and Postgres)
├── status.pb.go                    # Generated protocol buffer code for UTXO status
├── status.proto                    # Protocol buffer definition for UTXO status
├── utils.go                        # Utility functions for the UTXO Store
└── utils_test.go                   # Tests for utility functions

7. Running the Store Locally

How to run

To run the UTXO Store locally, you can execute the following command:

SETTINGS_CONTEXT=dev.[YOUR_USERNAME] go run -UtxoStore=1

Please refer to the Locally Running Services Documentation document for more information on running the Bootstrap Service locally.

8. Configuration and Settings

The UTXO Store can be configured using various connection URLs and configuration parameters. This section provides a comprehensive reference of all available configuration options.

8.1 Connection URL Format

The utxostore setting determines which datastore implementation to use. The connection URL format varies depending on the selected backend:

8.1.1 Aerospike

aerosike://host:port/namespace?param1=value1&param2=value2

Example:

utxostore.dev.[YOUR_USERNAME]=aerospike://aerospikeserver.teranode.dev:3000/teranode-store?set=txmeta&externalStore=blob://blobserver:8080/utxo

URL Parameters:

• set: Aerospike set name (default: "txmeta")
• externalStore: URL for storing large transactions (required)
• ConnectionQueueSize: Connection queue size for Aerospike client
• LimitConnectionsToQueueSize: Whether to limit connections to queue size

8.1.2 SQL (PostgreSQL/SQLite)

PostgreSQL:

postgres://username:password@host:port/dbname?param1=value1&param2=value2

Example:

utxostore.dev.[YOUR_USERNAME]=postgres://miner1:miner1@postgresserver.teranode.dev:5432/teranode-store?expiration=24h

SQLite:

sqlite:///path/to/file.sqlite?param1=value1&param2=value2

Example:

utxostore.dev.[YOUR_USERNAME]=sqlite:///data/utxo.sqlite?expiration=24h

In-memory SQLite:

sqlitememory:///name?param1=value1&param2=value2

Example:

utxostore.dev.[YOUR_USERNAME]=sqlitememory:///utxo?expiration=24h

URL Parameters:

• expiration: Duration after which spent UTXOs are cleaned up (e.g., "24h", "7d")
• logging: Enable SQL query logging (true/false)

8.1.3 Memory

memory://host:port/mode

Example:

utxostore.dev.[YOUR_USERNAME]=memory://localhost:${UTXO_STORE_GRPC_PORT}/splitbyhash

Modes: - splitbyhash: Distributes UTXOs based on hash - all: Stores all UTXOs in memory

8.1.4 Nullstore

null:///

Example:

utxostore.dev.[YOUR_USERNAME]=null:///

8.2 Configuration Parameters

The UTXO Store can be configured through the UtxoStoreSettings struct which contains various parameters to control the behavior of the store. These settings can be specified in your configuration file or through environment variables.

8.2.1 General Settings

Parameter	Type	Description	Default
UtxoStore	*url.URL	Connection URL for the UTXO store	-
BlockHeightRetention	uint32	Number of blocks to retain data for	-
UtxoBatchSize	int	Batch size for UTXOs (critical - do not change after initial setup)	128
DBTimeout	time.Duration	Timeout for database operations	5s
UseExternalTxCache	bool	Whether to use external transaction cache	true
ExternalizeAllTransactions	bool	Whether to externalize all transactions	false
VerboseDebug	bool	Enable verbose debugging	false
UpdateTxMinedStatus	bool	Whether to update transaction mined status	true

8.2.2 SQL-specific Settings

Parameter	Type	Description	Default
PostgresMaxIdleConns	int	Maximum number of idle connections to the PostgreSQL database	10
PostgresMaxOpenConns	int	Maximum number of open connections to the PostgreSQL database	100

8.2.3 Batch Processing Settings

The UTXO Store uses batch processing to improve performance. The following settings control the behavior of various batchers:

Parameter	Type	Description	Default
StoreBatcherSize	int	Batch size for store operations	256
StoreBatcherDurationMillis	int	Maximum duration in milliseconds for store batching	10
StoreBatcherConcurrency	int	Number of concurrent store batcher goroutines	32
SpendBatcherSize	int	Batch size for spend operations	100
SpendBatcherDurationMillis	int	Maximum duration in milliseconds for spend batching	100
SpendBatcherConcurrency	int	Number of concurrent spend batcher goroutines	32
OutpointBatcherSize	int	Batch size for outpoint operations	100
OutpointBatcherDurationMillis	int	Maximum duration in milliseconds for outpoint batching	10
IncrementBatcherSize	int	Batch size for increment operations	256
IncrementBatcherDurationMillis	int	Maximum duration in milliseconds for increment batching	10
SetDAHBatcherSize	int	Batch size for Delete-At-Height operations	256
SetDAHBatcherDurationMillis	int	Maximum duration in milliseconds for DAH batching	10
UnspendableBatcherSize	int	Batch size for unspendable operations	256
UnspendableBatcherDurationMillis	int	Maximum duration in milliseconds for unspendable batching	10
GetBatcherSize	int	Batch size for get operations	1
GetBatcherDurationMillis	int	Maximum duration in milliseconds for get batching	10
MaxMinedRoutines	int	Maximum number of concurrent goroutines for processing mined transactions	128
MaxMinedBatchSize	int	Maximum number of mined transactions processed in a batch	1024

8.3 Environment Variables

Many of the settings can also be configured through environment variables. The variables follow the pattern of uppercasing the parameter name with underscores, prefixed with TERANODE_.

For example:

• TERANODE_UTXO_STORE_BLOCK_HEIGHT_RETENTION sets the BlockHeightRetention parameter
• TERANODE_UTXO_STORE_UTXO_BATCH_SIZE sets the UtxoBatchSize parameter

8.4 Configuration Interactions and Best Practices

8.4.1 Batch Processing

Batch processing significantly improves performance by reducing the number of database operations. However, it introduces a trade-off between latency and throughput:

• Larger batch sizes increase throughput but may increase latency for individual operations
• Shorter batch durations decrease latency but may reduce throughput

Recommendations: - For high-throughput environments, increase batch sizes and durations - For low-latency requirements, decrease batch durations - Balance StoreBatcherSize, GetBatcherSize, and SpendBatcherSize according to your workload characteristics

8.4.2 External Transaction Storage

When UseExternalTxCache is enabled, transactions are cached for a short period (10 seconds) after being read from the store. This significantly improves performance for transactions with many outputs being spent simultaneously.

The ExternalizeAllTransactions setting controls whether all transactions are stored externally. This can improve performance but requires additional storage space.

8.4.3 Database Connection Pooling

For SQL backends (PostgreSQL), the PostgresMaxIdleConns and PostgresMaxOpenConns settings control the connection pool behavior:

• PostgresMaxOpenConns: Limits the maximum number of concurrent connections to the database
• PostgresMaxIdleConns: Controls how many idle connections are maintained in the pool

Recommendations: - Set PostgresMaxOpenConns based on your database server capacity and expected load - Set PostgresMaxIdleConns to a value that balances connection reuse with server resource usage

8.4.4 Critical Settings

Important: The UtxoBatchSize setting is critical and must not be changed after the UTXO store has been running. It is used to calculate the offset for transaction outputs, and changing it would break the store's integrity.

9. Other Resources

UTXO Store Reference
