🔍 UTXO Persister Service

Index

1. Description
2. Functionality
   • 2.1 Service Initialization
   • 2.2 Receiving and Processing a new UTXO Set
   • 2.3 Processing Blocks and Creating UTXO Sets
3. Data Model
4. Technology
5. Directory Structure and Main Files
6. How to run
7. Configuration Settings
8. Other Resources

1. Description

The UTXO Persister primary function is to create and maintain an up-to-date Unspent Transaction Output (UTXO) file set for each block in the blockchain.

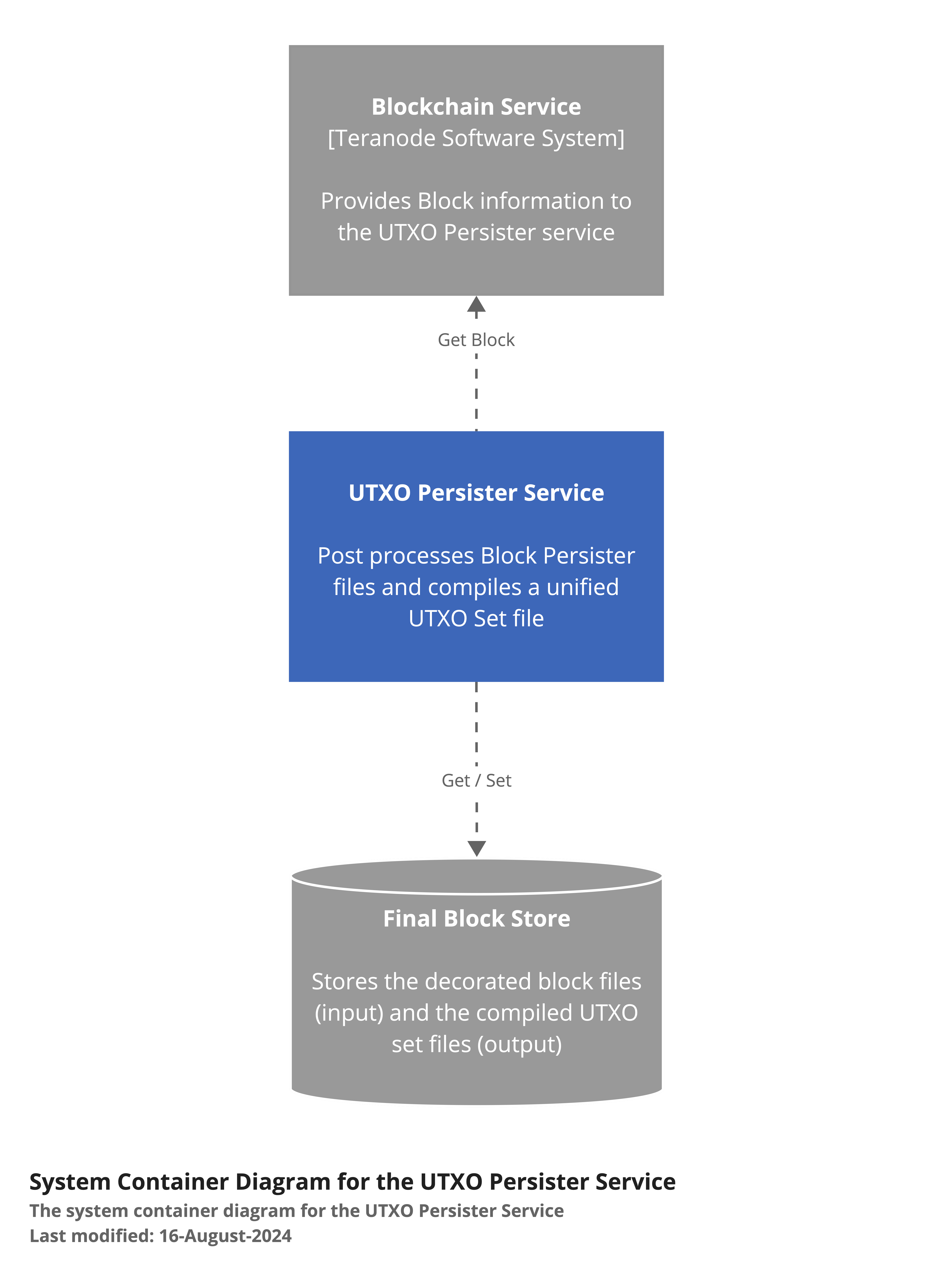

To achieve its target, the UTXO Persister uses the output of the Block Persister service, and outputs an updated UTXO set file.

The UTXO set file can be exported and used as an input for initializing the UTXO store in a new Teranode instance.

1. Input Processing:

   • The UTXO Persister works with the output of the Block Persister, which includes:

     • utxo-additions: New UTXOs created in a block,
     • utxo-deletions: UTXOs spent in a block,
     • .block: The block data,
     • .subtree: Subtree information for the block.

2. UTXO Set Generation:

   • For each new block fileset detected, the UTXO Persister creates a 'utxo-set' file.
   • This file represents the complete set of unspent transaction outputs up to and including the current block.

3. File Monitoring and Processing:

   • The service continuously monitors the shared storage for new .block files and additional related files.
   • When new files are detected, it triggers the UTXO set creation process.

4. Progress Tracking:

   • The service maintains a lastProcessed.dat file to keep track of the last block height processed.
   • This ensures continuity and allows the service to resume from the correct point after restarts or interruptions.

5. Efficient Data Handling:

   • The service uses optimized data structures and file formats to handle large volumes of UTXO data efficiently.
   • It implements binary encoding for UTXOs and UTXO deletions to minimize storage requirements and improve processing speed.

6. File Management:

   • The service interacts with the storage system to read and write necessary files.

Note: For information about how the UTXO Persister service is initialized during daemon startup and how it interacts with other services, see the Teranode Daemon Reference.

The service interacts with the storage system to read and write necessary files (shared with the Block Persister service), and requests block information from the Blockchain service (or, optionally, directly from the Blockchain store)

2. Functionality

2.1 Service Initialization

1. The service starts by creating connections to:

   • A blob store (shared with the block persister) for file storage
   • Either the Blockchain service or the Blockchain store for block information

2. It reads the last processed height from lastProcessed.dat.

3. The service then enters a loop, waiting for new blocks to process.

2.2 Receiving and Processing a new UTXO Set

2.3 Processing Blocks and Creating UTXO Sets

The UTXO Persister processes blocks and creates UTXO sets as follows:

1) Trigger and Block Height Check:

- The service is triggered to process the next block (via notification, timer, or startup).
- It checks if the next block to process is at least 100 blocks behind the current best block height.

2) Block Headers Retrieval:

- If processing is needed, the service retrieves block headers from either the Blockchain Store or Blockchain Client.
- It verifies the chain continuity using these headers.

3) Last Set Verification:

- The service verifies the last UTXO set using `verifyLastSet()` to ensure data integrity.

4) Block Range Consolidation:

- A new Consolidator is created to process a range of blocks efficiently.
- The `ConsolidateBlockRange()` method is called to handle multiple blocks at once if needed.

5) UTXO Set Preparation:

- The service calls `GetUTXOSetWithDeletionsMap()` to prepare the UTXO set for the new block.
- This retrieves the UTXO deletions from the Block Store and creates a deletions map.

6) UTXO Set Creation:

- The `CreateUTXOSet()` method is called on the UTXOSet object.
- This method:

  - Retrieves the previous block's UTXO set from the Block Store.
  - Applies the deletions from the deletions map.
  - Incorporates new UTXOs from the block's transactions.
  - Writes the new UTXO set to the Block Store.

7) Cleanup:

- If not skipped (based on configuration), the service deletes the previous block's UTXO set to save space.

8) Update Last Processed Height:

- The service calls `writeLastHeight()` to update its record of the last processed block height.

9) Trigger Next Block Processing:

- The service initiates the processing of the next block, continuing the cycle.

If the current height is less than 100 blocks behind the best block height, the service waits for more confirmations before processing.

3. Data Model

1. Basic Structure: The UTXO set is essentially a collection of all unspent transaction outputs in the blockchain up to a specific block height. Each UTXO represents a piece of cryptocurrency that can be spent in future transactions.

2. UTXO Components: The UTXOs are stored in a hierarchical structure, with the following components:

UTXOWrapper:

type UTXOWrapper struct {
    TxID     chainhash.Hash
    Height   uint32
    Coinbase bool
    UTXOs    []*UTXO
}

UTXO:

type UTXO struct {
    Index  uint32
    Value  uint64
    Script []byte
}

• TxID: The transaction ID where this UTXO was created (32 bytes)
• Index: The output index in the transaction (4 bytes)
• Value: The amount of cryptocurrency in this UTXO (8 bytes)
• Height: The block height where this UTXO was created (4 bytes)
• Script: The locking script that must be satisfied to spend this UTXO (variable length)

• Coinbase: A flag indicating whether this UTXO is from a coinbase transaction (1 bit, packed with Height)

• Binary Encoding: The UTXO is encoded into a binary format for efficient storage and retrieval:

  • 32 bytes: TxID
  • 4 bytes: Index (little-endian)
  • 8 bytes: Value (little-endian)
  • 4 bytes: Height and Coinbase flag (Height << 1 | CoinbaseFlag)
  • 4 bytes: Script length (little-endian)
  • Variable bytes: Script

• UTXO Set File: The UTXO set for each block is stored in a file with the extension utxo-set. This file contains a series of encoded UTXOs representing all unspent outputs up to that block.

• UTXO Diff: The UTXO Persister uses a diff-based approach to update the UTXO set:

  • utxo-additions: New UTXOs created in a block
  • utxo-deletions: UTXOs spent in a block

• UTXO Deletion Model: When a UTXO is spent, it's recorded in the utxo-deletions file. The deletion record contains:

  • TxID (32 bytes)
  • Index (4 bytes)

• Set Operations:

  • Creating a new UTXO set involves:
  • Starting with the previous block's UTXO set
  • Removing UTXOs listed in the current block's utxo-deletions
  • Adding UTXOs listed in the current block's utxo-additions

• Persistence: The UTXO set is persisted using a FileStorer, which writes the data to a blob store.

4. Technology

1. Programming Language:

   • Go (Golang): The entire service is written in Go.

2. Blockchain-specific Libraries:

   • github.com/bsv-blockchain/go-bt/v2: A Bitcoin SV library for Go, used for handling Bitcoin transactions and blocks.
   • github.com/bitcoin-sv/teranode: Custom package for Bitcoin SV operations.

3. Storage:

   • Blob Store: Used for reading block data, subtrees, and UTXO diff files, and for writing UTXO Set files.

4. Configuration Management:

   • github.com/ordishs/gocore: Used for configuration management (e.g., reading config values).

5. Directory Structure and Main Files

The Block Persister service is located in the services/utxopersister directory.

./services/utxopersister/
│
├── Server.go
│   Main implementation of the UTXO Persister server. It contains the core logic for
│   initializing the service, handling requests, and coordinating UTXO set updates.
│
├── UTXO.go
│   Defines the UTXO (Unspent Transaction Output) data structure and related methods.
│
├── UTXOSet.go
│   Implements the UTXOSet structure and related methods.
│
├── UTXODeletion.go
│   Implements the logic for UTXO deletions, which occur when UTXOs are spent in a transaction.
|
└── filestorer/
    │
    └── FileStorer.go
        Implements a custom file storage mechanism, optimized for the specific
        needs of storing and retrieving UTXO data efficiently.

6. How to run

To run the UTXO Persister Service locally, you can execute the following command:

SETTINGS_CONTEXT=dev.[YOUR_USERNAME] go run -UTXOPersister=1

Please refer to the Locally Running Services Documentation document for more information on running the UTXO Persister Service locally.

7. Configuration Settings

The UTXO Persister service relies on a set of configuration settings that control its behavior, performance, and resource usage. This section provides a comprehensive overview of these settings, organized by functional category, along with their impacts, dependencies, and recommended configurations for different deployment scenarios.

7.1 Configuration Categories

UTXO Persister service settings can be organized into the following functional categories:

1. Performance Tuning: Settings that control I/O performance and memory usage
2. Storage Management: Settings that manage file storage and retention policies
3. Deployment Architecture: Settings that determine how the service interacts with other components
4. Operational Controls: Settings that affect general service behavior

7.2 Performance Tuning Settings

These settings control the I/O performance and memory usage patterns of the UTXO Persister service.

Setting	Type	Default	Description	Impact
utxoPersister_buffer_size	string	"4KB"	Controls the buffer size for reading from and writing to UTXO files	Affects I/O performance and memory usage when processing UTXO data

Performance Tuning Interactions and Dependencies

The buffer size setting directly affects how efficiently the service reads and writes UTXO data:

• Larger buffer sizes (e.g., 64KB to 1MB) can significantly improve I/O throughput by reducing the number of system calls needed for file operations
• Smaller buffer sizes reduce memory usage but may increase CPU overhead due to more frequent I/O operations
• The optimal buffer size depends on the hardware characteristics, particularly disk I/O capabilities, available memory, and the size of typical UTXO files

For high-throughput environments with fast storage systems (like SSDs), larger buffer sizes provide better performance. For memory-constrained environments, smaller buffers may be necessary despite the performance impact.

7.3 Storage Management Settings

These settings control how UTXO data is stored and retained.

Setting	Type	Default	Description	Impact
blockpersister_skipUTXODelete	bool	false	When true, previous block's UTXO sets aren't deleted after processing	Controls storage usage and retention policy for historical UTXO sets
blockstore	*url.URL	"file://./data/blockstore"	Specifies the URL for the block storage backend	Determines where block data, including UTXO sets, are stored
txstore	*url.URL	""	Specifies the URL for the transaction storage backend	Determines where transaction data is stored for block processing
txmeta_store	*url.URL	""	Specifies the URL for the UTXO metadata storage backend	Determines where UTXO metadata is stored for efficient lookups

Storage Management Interactions and Dependencies

These settings determine the storage footprint and data persistence behavior of the service:

• When blockpersister_skipUTXODelete is false (default), the service maintains minimal storage by only keeping the UTXO set for the most recent processed block
• When set to true, the service preserves all historical UTXO sets, which increases storage requirements but enables historical analysis and validation
• The blockstore setting defines where all block-related data is stored, affecting both read and write performance based on the underlying storage system
• The txstore and txmeta_store settings determine where transaction data and UTXO metadata are stored, respectively, which impacts performance and data availability

Storage requirements grow significantly when keeping historical UTXO sets, as each set contains the complete state of all unspent outputs at a given block height.

7.4 Deployment Architecture Settings

These settings control how the UTXO Persister interacts with other components in the system.

Setting	Type	Default	Description	Impact
direct	bool	true	Controls whether the service connects directly to the blockchain store or uses the client interface	Affects performance and deployment architecture

Deployment Architecture Interactions and Dependencies

The deployment architecture settings determine how the service integrates with the broader system:

• When direct is true, the service bypasses the blockchain client interface and connects directly to the blockchain store, which improves performance but requires the service to be deployed in the same process
• When direct is false, the service uses the blockchain client interface, allowing for distributed deployment at the cost of additional network overhead

This setting has significant implications for system design and deployment flexibility. Direct access provides better performance but limits deployment options, while client-based access enables more flexible deployment topologies but may impact performance.

7.5 Operational Controls Settings

These settings control general operational aspects of the service.

Setting	Type	Default	Description	Impact
fsm_state_restore	bool	false	When true, the service restores state from a previously saved state file	Controls recovery behavior after restarts or failures
network	string	Varies by deployment	Specifies the blockchain network (mainnet, testnet, etc.)	Determines which network's rules and parameters are used

Operational Controls Interactions and Dependencies

These settings affect how the service operates and recovers from failures:

• The fsm_state_restore setting enables recovery from a previously saved state, which can be crucial for maintaining data continuity after unexpected shutdowns
• The network setting ensures the service applies the correct rules and parameters for the target blockchain network

These settings typically interact with broader system configuration and are often shared across multiple services.

7.6 Configuration Best Practices

1. Performance Monitoring: Regularly monitor I/O performance metrics when adjusting buffer sizes. Balance memory usage against throughput based on your specific hardware capabilities.

2. Storage Planning: When using blockpersister_skipUTXODelete=true, implement a storage monitoring and management strategy. UTXO sets grow significantly over time and may require substantial storage capacity.

3. Deployment Architecture: Choose direct access (direct=true) whenever possible for best performance, unless your system architecture specifically requires distributed deployment.

4. Recovery Testing: Regularly test the recovery process with fsm_state_restore=true to ensure continuity after failures or planned restarts.

5. Storage Location: Use persistent, reliable storage locations for the blockstore setting in production environments, ideally on dedicated, high-performance storage systems.

6. Backup Strategy: Implement regular backups of your UTXO data, especially the most recent UTXO set, to enable rapid recovery in case of data corruption or storage failures.

7. Service Coordination: Ensure that blockchain services and UTXO Persister services are properly coordinated in terms of startup sequence and operational dependencies, particularly when using direct access mode.

8. Other Resources

UTXO Persister Reference
