1. Introduction

Note: For information about how the RPC service is initialized during daemon startup and how it interacts with other services, see the Teranode Daemon Reference.

The RPC server provides compatibility with the Bitcoin RPC interface, allowing clients to interact with the Teranode node using standard Bitcoin RPC commands. The RPC server listens for incoming requests and processes them, returning the appropriate responses.

Teranode provides partial support, as required for its own services. Additional support for specific commands and features might be added over time.

The below table summarises the services supported in the current version:

Supported RPC Commands

RPC Command	Status	Description
createrawtransaction	Supported	Creates a raw transaction without signing it
freeze	Supported	Freezes a specific UTXO, preventing it from being spent
generate	Supported	Generates blocks (for testing)
generatetoaddress	Supported	Generates blocks to a specified address (for testing)
getbestblockhash	Supported	Returns the hash of the best (tip) block in the longest blockchain
getblock	Supported	Returns information about a block from the block hash
getblockbyheight	Supported	Returns information about a block from the block height
getblockchaininfo	Supported	Returns state information about blockchain processing
getblockhash	Supported	Returns hash of block in best-block-chain at height
getblockheader	Supported	Returns information about block header from hash
getdifficulty	Supported	Returns the proof-of-work difficulty as a multiple of the minimum difficulty
getinfo	Supported	Returns general information about the node and blockchain
getmininginfo	Supported	Returns mining-related information
getpeerinfo	Supported	Returns data about each connected network node
getrawtransaction	Supported	Returns raw transaction data
getminingcandidate	Supported	Returns data needed to construct a block to work on
invalidateblock	Supported	Permanently marks a block as invalid
isbanned	Supported	Checks if a network address is currently banned
reassign	Supported	Reassigns ownership of a specific UTXO to a new Bitcoin address
reconsiderblock	Supported	Removes invalidity status of a block
sendrawtransaction	Supported	Submits raw transaction to local node and network
setban	Supported	Attempts to add or remove an IP/Subnet from the banned list
stop	Supported	Stops the node
submitminingsolution	Supported	Submits a mining solution to the network
unfreeze	Supported	Unfreezes a previously frozen UTXO, allowing it to be spent
version	Supported	Returns version information about the server

Unimplemented RPC Commands

RPC Command	Status	Description
addnode	Unimplemented	Attempts to add or remove a node from the addnode list
debuglevel	Unimplemented	Changes the debug level of the server
decoderawtransaction	Unimplemented	Returns a JSON object representing the serialized transaction
decodescript	Unimplemented	Decodes a hex-encoded script
estimatefee	Unimplemented	Estimates the fee per kilobyte for a transaction
getaddednodeinfo	Unimplemented	Returns information about added nodes
getbestblock	Unimplemented	Returns the height and hash of the best block
getblockcount	Unimplemented	Returns the number of blocks in the longest blockchain
getblocktemplate	Unimplemented	Returns data needed to construct a block to work on
getcfilter	Unimplemented	Returns a compact filter for a block
getcfilterheader	Unimplemented	Returns the filter header of a block
getconnectioncount	Unimplemented	Returns the number of connections to other nodes
getcurrentnet	Unimplemented	Returns the name of the current network
getgenerate	Unimplemented	Returns if the server is set to generate coins
gethashespersec	Unimplemented	Returns a recent hashes per second performance measurement
getheaders	Unimplemented	Returns block headers starting from a hash
getmempoolinfo	Unimplemented	Returns information about the node's current transaction memory pool
getnettotals	Unimplemented	Returns information about network traffic
getnetworkhashps	Unimplemented	Returns the estimated network hashes per second
getrawmempool	Unimplemented	Returns all transaction ids in memory pool
gettxout	Unimplemented	Returns details about an unspent transaction output
gettxoutproof	Unimplemented	Returns a hex-encoded proof that a transaction was included in a block
help	Unimplemented	Lists all available commands, or gets help for a specified command
node	Unimplemented	Attempts to add or remove a node from the addnode list
ping	Unimplemented	Queues a ping to be sent to all connected peers
searchrawtransactions	Unimplemented	Returns raw transactions matching given criteria
setgenerate	Unimplemented	Sets if the server should generate coins
submitblock	Unimplemented	Attempts to submit a new block to the network
uptime	Unimplemented	Returns the total uptime of the server
validateaddress	Unimplemented	Returns information about the given bitcoin address
verifychain	Unimplemented	Verifies blockchain database
verifymessage	Unimplemented	Verifies a signed message
verifytxoutproof	Unimplemented	Verifies that a proof points to a transaction in a block

Command help

A description of the commands can be found in the rpcserverhelp.go file in the bsvd repository:

rpcserverhelp.go

Teranode RPC server is designed to be compatible with the Bitcoin RPC interface, as implemented in the bsvd repository.

Authentication

All RPC commands require a valid username and password for authentication. The server listens on a specified port for incoming requests and processes them accordingly. The server could be opened up only for local (within the node) access, or it could be exposed to the public internet, depending on the deployment requirements. In either case, authentication is required to access the RPC server.

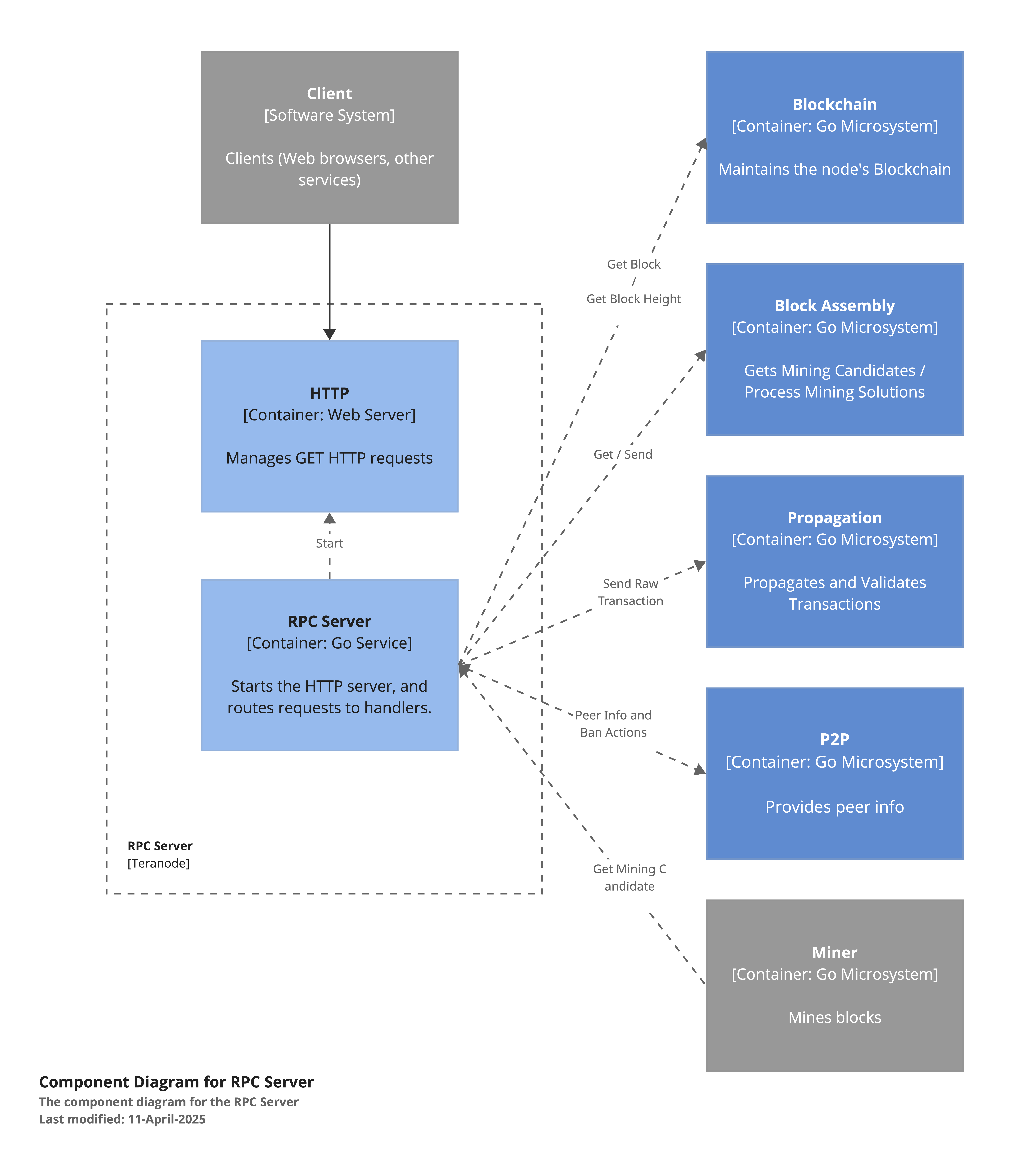

2. Architecture

The RPC server is a standalone service that listens for incoming requests and processes them based on the command type. The server starts by initializing the HTTP server and setting up the necessary configurations.

It then listens for incoming requests and routes them to the appropriate handler based on the command type. The handler processes the request, executes the command, and returns the response to the client.

In order to serve some of the requests, the RPC server interacts with the Teranode core services to fetch the required data.

For example, when a getblock command is received, the server interacts with the blockchain service to fetch the block data.

Also, when a generate command is received, the server interacts with the miner service to generate the requested number of blocks.

3. Functionality

3.1. RPC Service Initialization and Configuration

3.2. Command: Create Raw Transaction

The createrawtransaction RPC method is used in Bitcoin to manually create a raw transaction. This transaction is not broadcast to the network but returned as a hex-encoded string. The created transaction could then be further modified, signed, and eventually broadcast using other RPC commands.

The CreateRawTransaction method constructs a transaction that spends a given set of inputs and sends the outputs to specified addresses. It requires specific parameters about the inputs (which UTXOs to spend) and outputs (where to send the coins).

Input Parameters

Inputs: A list of transaction inputs including the transaction ID (txid), output index (vout), and a sequence number if applicable.
Amounts: A dictionary where each key is a Bitcoin address and the value is the amount of bitcoin to send to that address.
LockTime (optional): Specifies the earliest time or block number that this transaction can be included in the blockchain.

Steps

Validate LockTime: Checks if the provided LockTime is within the valid range.
Create Transaction: Initializes a new transaction (mtx).
Process Inputs:
- For each input, it validates the transaction ID and constructs the transaction input structure.
- If a LockTime is set and not zero, it adjusts the sequence number to allow for the lock time to be effective.
Process Outputs:
- Validates the amount for each output to ensure it's within the valid monetary range.
- Validates each output address, ensuring it's a supported type and appropriate for the network.
- Creates a payment script for each address and constructs the transaction output.
Set Transaction LockTime: If provided, sets the transaction's lock time.
Serialize Transaction: Converts the transaction to a hex-encoded string for output.

Outputs

Success: Returns a hex-encoded string representing the raw transaction.
Error: Returns an error if there are issues with the inputs, outputs, lock time, address decoding, or serialization.

3.3. Command: Freeze

The freeze command allows administrators to freeze a specific UTXO, preventing it from being spent in future transactions.

Function Overview

Purpose: To mark a specific transaction output (UTXO) as frozen, making it unavailable for spending
Parameters:
- txid (string, required): The transaction ID of the output to freeze
- vout (numeric, required): The output index to freeze
Return Value:
- On success: Returns true indicating the UTXO was successfully frozen
- On failure: Returns an error if the UTXO cannot be found or frozen

Process Flow

Request Processing:
- Receives request with transaction ID and output index
- Validates input parameters
- Initializes tracing and metrics
UTXO Validation:
- Checks if the specified UTXO exists
- Validates that the UTXO is not already frozen
Freezing Operation:
- Marks the UTXO as frozen in the UTXO state database
- Records the freezing action for auditing purposes
Response Construction:
- Returns true on successful freeze operation
- Returns error if validation fails or database update fails

(Success) Response Fields

Returns boolean true on successful freeze operation

Important Notes

Freezing a UTXO is an administrative function that should be used with caution
This operation is reversible using the unfreeze command
Frozen UTXOs will be rejected if included in transaction inputs

3.4. Command: Generate

The generate command is used to generate a specified number of blocks on the blockchain. The RPC server processes this command by interacting with the blockchain service to create the requested number of blocks.

This command is commonly used in testing and development environments to artificially advance the blockchain by generating blocks immediately, rather than waiting for them to be mined in the usual way.

The function accepts a GenerateCmd which contains the number of blocks to generate, and sends an HTTP GET request to the miner's URL (e.g. http://localhost:${MINER_HTTP_PORT}/mine?blocks=${numberOfBlocksToGenerate}) to trigger block generation.

Example Use:

// Sample usage within an RPC server setup
command := &bsvjson.GenerateCmd{NumBlocks: 10}
result, err := handleGenerate(rpcServerInstance, command, closeChannel)
if err != nil {
    log.Fatalf("Failed to generate blocks: %v", err)
}

Settings: It requires a valid MINER_HTTP_PORT setting.
Considerations:
- This function should not be exposed in production environments as it allows the generation of blocks outside of the normal consensus rules, which can be exploited or lead to unintended forks if used maliciously.
- Ensure the miner service is secured and only accessible by the RPC server to prevent unauthorized block generation.

(Success) Response Fields

Returns nil on success

3.5. Command: Generate to Address

The generatetoaddress command mines blocks immediately to a specified address. This command is primarily used for testing purposes.

Function Overview

Purpose: To generate a specified number of blocks with coinbase rewards sent to a designated address
Parameters:
- nblocks (numeric, required): Number of blocks to generate
- address (string, required): The address to send the newly generated bitcoin to
- maxtries (numeric, optional): Maximum number of iterations to try
Return Value:
- On success: Returns an array of block hashes that were generated
- On failure: Returns an error describing what went wrong

Process Flow

Request Processing:
- Receives request with number of blocks, destination address, and optional max tries
- Validates input parameters
- Initializes tracing and metrics
Address Validation:
- Validates the destination address format and network compatibility
- Creates a payment script for the address
Block Generation Setup:
- Prepares the mining configuration with the specified address
- Sets up the maximum number of hash attempts (tries)
Block Generation Loop:
- For each requested block:
```
    - Creates a new block template with the address script
```
  - Performs proof-of-work calculation
  - Processes and validates the new block
  - Adds the block to the blockchain
Response Construction:
- Collects the hashes of all successfully generated blocks
- Returns the array of block hashes

(Success) Response Fields

Returns an array of strings, each containing the hex-encoded hash of a generated block

Important Notes

This command is for testing purposes only and should not be used in production environments
It bypasses normal mining difficulty by forcing block creation
Can be used to test blockchain functionality or advance the chain state rapidly for testing
All generated blocks will send the block reward to the specified address

3.6. Command: Get Best Block Hash

The getbestblockhash command is used to retrieve the hash of the best (most recent) block on the blockchain. The RPC server processes this command by interacting with the blockchain service to fetch the hash of the best block.

(Success) Response Fields

hash: The hex-encoded hash of the best block in the main chain

3.7. Command: Get Block

The getblock command is used to retrieve information about a specific block on the blockchain. The RPC server processes this command by interacting with the blockchain service to fetch the block data based on the provided block hash.

(Success) Response Fields

When verbosity=0:

Returns hex-encoded serialized block data

When verbosity=1 or 2:

hash: The block hash (same as provided)
confirmations: Number of confirmations
size: The block size in bytes
height: The block height
version: The block version
versionHex: The block version in hexadecimal
merkleroot: Root hash of the merkle tree
time: Block time in Unix epoch
nonce: The block nonce
bits: The bits which represent the block difficulty
difficulty: The proof-of-work difficulty
previousblockhash: Hash of the previous block
nextblockhash: Hash of the next block (if available)

3.8. Command: Get Block By Height

The getblockbyheight command returns information about a block at a specific height in the blockchain. The response format varies based on the verbosity parameter.

Function Overview

Purpose: To retrieve block information using block height instead of block hash
Parameters:
- height: The height of the block to retrieve
- verbosity: Determines the format and detail level of the returned data
- 0: Returns serialized, hex-encoded block data
- 1: Returns JSON object with block information
- 2: Returns JSON object with block information including detailed transaction data
Return Value:
- On success: Returns block data in the format specified by verbosity
- On failure: Returns an error if the block cannot be found or retrieved

Process Flow

Request Processing:
- Receives request with block height and verbosity level
- Validates input parameters
Block Retrieval:
- Queries blockchain service to get block at specified height
- If block not found, returns appropriate error
Response Construction:
- For verbosity=0:
  - Returns hex-encoded serialized block data
    - For verbosity=1:
  - Returns JSON object with block header information and transaction IDs
    - For verbosity=2:
  - Returns JSON object with complete block information including full transaction data

(Success) Response Fields

When verbosity=0:

Returns hex-encoded serialized block data

When verbosity=1 or 2:

hash: The block hash
confirmations: Number of confirmations
size: Block size in bytes
height: Block height
version: Block version
versionHex: Block version in hexadecimal
merkleroot: Merkle root hash
time: Block timestamp
nonce: Block nonce
bits: Target difficulty bits
difficulty: Calculated difficulty
previousblockhash: Hash of previous block
nextblockhash: Hash of next block (if available)
tx: Array of transaction IDs (verbosity=1) or full transaction data (verbosity=2)

3.9. Command: Get Blockchain Info

The getblockchaininfo command returns information about the current blockchain state, including network name, block count, and other blockchain-related data.

Function Overview

Purpose: To retrieve comprehensive information about the current state of the blockchain.
Parameters: None
Return Value:
- On success: Returns a JSON object containing blockchain state information
- On failure: Returns an error describing what went wrong

Process Flow

Request Processing:
- Receives request for blockchain information
- No parameters to validate
Blockchain Query:
- Retrieves the best block header and metadata from the blockchain service
- If retrieval fails, returns an error
Response Construction:
- Constructs response object containing:
  - Chain name (main, test, regtest)
  - Current block count
  - Header count
  - Best block hash
  - Current difficulty
  - Chain work
  - Additional metadata (pruning status, soft fork information)

(Success) Response Fields

chain: The name of the blockchain network (main, test, regtest)
blocks: The current number of blocks in the chain
headers: Number of headers in the chain (currently hardcoded to 863341)
bestblockhash: Hash of the current best block
difficulty: Current mining difficulty
mediantime: Median time of the chain (currently 0)
verificationprogress: Chain verification progress (currently 0)
chainwork: Total accumulated work in the chain
pruned: Whether the node is running in pruned mode (currently false)
softforks: Array of active soft forks (currently empty)

3.10. Command: Get Block Hash

The getblockhash command returns the hash of a block at a specific height in the blockchain.

Function Overview

Purpose: To retrieve the hash of a block at a given block height
Parameters:
- index: The height of the block in the blockchain
Return Value:
- On success: Returns the block hash as a string
- On failure: Returns an error if the block cannot be found

Process Flow

Request Processing:
- Receives request with block height (index)
- Validates input parameter
Block Retrieval:
- Queries blockchain service to get block at specified height
- Extracts hash from retrieved block
Response Construction:
- Returns the block hash as a string

(Success) Response Fields

Returns string containing the hex-encoded hash of the block at the specified height

3.11. Command: Get Block Header

The getblockheader command returns information about a block's header given its hash. The response format varies based on the verbose parameter.

Function Overview

Purpose: To retrieve block header information using block hash
Parameters:
- hash: The hash of the block
- verbose: Boolean determining the format of the returned data
- false: Returns serialized, hex-encoded header data
- true: Returns JSON object with detailed header information
Return Value:
- On success: Returns header data in the format specified by verbose parameter
- On failure: Returns an error if the block cannot be found or hash is invalid

Process Flow

Request Processing:
- Receives request with block hash and verbose flag
- Validates block hash format
Header Retrieval:
- Queries blockchain service to get block header and metadata
- If block not found, returns appropriate error
Response Construction:
- For verbose=false:
  - Returns hex-encoded serialized header data
    - For verbose=true:
  - Calculates difficulty from bits
  - Returns JSON object with detailed header information

(Success) Response Fields

When verbose=false:

Returns hex-encoded serialized header data

When verbose=true:

hash: The block hash (same as provided)
version: Block version
versionHex: Block version in hexadecimal
previoushash: Hash of the previous block
merkleroot: Root hash of the merkle tree
time: Block timestamp
nonce: Block nonce value
bits: Target difficulty bits
difficulty: Calculated difficulty
height: Height of the block in the blockchain

3.12. Command: Get Difficulty

The getdifficulty command returns the proof-of-work difficulty as a multiple of the minimum difficulty.

Function Overview

Purpose: To retrieve the current mining difficulty of the network
Parameters: None
Return Value:
- On success: Returns the current difficulty as a floating-point number
- On failure: Returns an error if the difficulty cannot be retrieved

Process Flow

Request Processing:
- Receives request for current difficulty
- Initializes tracing and metrics
Difficulty Retrieval:
- Queries block assembly service for current difficulty
- If retrieval fails, returns appropriate error
Response Construction:
- Returns the difficulty value directly to the client

3.13. Command: Get Info

The getinfo command returns general information about the node's state, including version information, network status, and blockchain details.

Function Overview

Purpose: To retrieve general information about the node's current state and configuration.
Parameters: None
Return Value:
- On success: Returns a JSON object containing node state information
- On failure: Returns an error if blockchain height cannot be retrieved

Process Flow

Height Retrieval:
- Queries blockchain service for current best height and time
- If query fails, sets height to 0 and logs error
Response Construction:
- Builds response containing:
  - Server version
  - Protocol version
  - Current block height
  - Network time offset
  - Connection count
  - Network type (testnet/mainnet/stn)
  - Minimum relay fee

(Success) Response Fields

version: Server version (currently 1)
protocolversion: Protocol version being used
blocks: Current block height
timeoffset: Network time offset (currently 1)
connections: Number of peer connections (currently 1)
proxy: Proxy being used, if any (currently "host:port")
difficulty: Current mining difficulty (currently 1)
testnet: Whether running on testnet
stn: Whether running on the Scaling Test Network
relayfee: Minimum relay fee for transactions (currently 100 sat/KB)

3.14. Command: Get Mining Info

The getmininginfo command returns various mining-related information including block chain state, current block statistics, and network mining parameters.

Function Overview

Purpose: To retrieve comprehensive information about the current mining state
Parameters: None
Return Value:
- On success: Returns a JSON object containing mining-related information
- On failure: Returns an error if the mining information cannot be retrieved

Process Flow

Request Processing:
- Receives request for mining information
- Initializes tracing and metrics
Data Retrieval:
- Queries blockchain service for best block header and metadata
- Calculates network hash rate based on difficulty and target block time
- If retrieval fails, returns appropriate error
Response Construction:
- Compiles mining information into a structured response
- Returns comprehensive mining state data

(Success) Response Fields

blocks: The current block height
currentblocksize: Size of the latest best block in bytes
currentblocktx: Number of transactions in the latest best block
difficulty: Current mining difficulty
errors: Current network error messages (empty string if none)
networkhashps: Estimated network hashes per second
chain: Current network name (main, test, regtest)

3.15. Command: Get Mining Candidate

The getminingcandidate RPC command in Bitcoin RPC is used to retrieve a candidate block for mining. This command allows miners to obtain the necessary information to attempt mining a new block.

Function Overview

Purpose: To request a mining candidate, which represents a potential new block template, from the node.
Parameters:
- The function doesn't take any specific parameters from the RPC call.
- closeChan: A channel that signals the function to close and stop processing, used for graceful shutdowns and interruption handling (not directly used in this implementation).
Return Value:
- On success: Returns a mining candidate object (mc) containing the necessary information for mining.
- On failure: Returns an error detailing why the mining candidate could not be retrieved.

Process Flow

Mining Candidate Retrieval:
- Calls the GetMiningCandidate method on the blockAssemblyClient to retrieve a mining candidate.
- The Block Assembly generates the latest block template from the blockchain's current state.
Error Handling:
- If the retrieval fails, the function returns the error to the caller.
Response:
- If successful, the function returns the mining candidate object (mc).

(Success) Response Fields

id: Hex-encoded mining candidate ID
prevhash: Previous block hash
coinbaseValue: Value for coinbase transaction
version: Block version
nBits: Encoded current difficulty target
time: Current timestamp
height: Block height
num_tx: Number of transactions
sizeWithoutCoinbase: Block size excluding coinbase
merkleProof: Array of merkle proof hashes
coinbase: Hex-encoded coinbase transaction (if requested)

3.16. Command: Get Peer Info

The getpeerinfo command returns data about each connected network peer as an array of JSON objects.

Purpose: To retrieve detailed information about all connected peers, both legacy and new P2P connections.
Parameters: None
Return Value:
- On success: Returns an array of peer information objects
- On failure: Returns partial information if at least one peer service responds

Process Flow

Legacy Peer Information:
- Queries legacy peer service for connected peer information
- If query fails, logs as non-critical error
- Processes legacy peer data if available
P2P Information:
- Queries new P2P service for connected peer information
- If query fails, logs as error
- Processes P2P data if available
Information Aggregation:
- Combines information from both sources
- Creates unified peer information objects
- Includes connection details, network stats, and state information
Response Construction:
- Returns array of peer information objects
- Each object contains available peer details based on connection type

(Success) Response Fields

For each peer:

id: Peer ID
addr: The IP address and port of the peer
addrlocal: Local address (legacy peers only)
servicesStr: Services supported by the peer
lastsend: Time of last sent message (legacy peers only)
lastrecv: Time of last received message (legacy peers only)
bytessent: Total bytes sent (legacy peers only)
bytesrecv: Total bytes received (legacy peers only)
conntime: Connection time (legacy peers only)
pingtime: Ping time in seconds (legacy peers only)
timeoffset: Time offset with peer (legacy peers only)
version: Protocol version (legacy peers only)
subver: Peer subversion string (legacy peers only)
inbound: Whether connection is inbound (legacy peers only)
startingheight: Starting height of peer (legacy peers only)
currentheight: Current height of peer (legacy peers only)
banscore: Ban score (legacy peers only)
whitelisted: Whether peer is whitelisted (legacy peers only)
feefilter: Minimum fee rate for transactions to be announced (legacy peers only)

The command aggregates peer information from both the legacy P2P service and the new P2P service, providing a comprehensive view of all connected peers.

3.17. Command: Get Raw Transaction

The getrawtransaction command retrieves raw transaction data for a specific transaction, either as a serialized hex string or as a detailed JSON object.

Function Overview

Purpose: To retrieve transaction data for a specific transaction identified by its transaction ID
Parameters:
- txid (string, required): The transaction ID to look up
- verbose (boolean, optional, default=false): If false, returns a hex-encoded string. If true, returns a JSON object with transaction details
Return Value:
- If verbose=false: Returns a serialized, hex-encoded string of the transaction
- If verbose=true: Returns a JSON object with detailed transaction information
- On failure: Returns an error if the transaction cannot be found

Process Flow

Request Processing:
- Receives request with transaction ID and verbosity flag
- Validates transaction ID format
- Initializes tracing and metrics
Transaction Retrieval:
- Queries blockchain service to locate the transaction
- If transaction not found, returns appropriate error
Response Formatting:
- For non-verbose (false) response:
```
    - Returns hex-encoded serialized transaction data
- For verbose (true) response:

    - Constructs detailed JSON object with transaction information
```
  - Includes metadata such as blockhash, confirmation count, and timestamp
  - Processes all inputs and outputs with script details
Response Construction:
- Returns the transaction data in the requested format

(Success) Response Fields

When verbose=false:

Returns a string containing the hex-encoded serialized transaction

When verbose=true:

hex: The serialized, hex-encoded transaction data
txid: The transaction ID (same as requested)
hash: The transaction hash (usually same as txid)
size: The transaction size in bytes
version: The transaction version number
locktime: The transaction's locktime
vin: Array of transaction inputs
- txid: Transaction ID of the input
- vout: Output index of the input
- scriptSig: Script signature
  - asm: Assembly representation of the script
  - hex: Hex-encoded script
- sequence: Input sequence number
vout: Array of transaction outputs
- value: The output value in BTC
- n: The output index number
- scriptPubKey: The output script
  - asm: Assembly representation of the script
  - hex: Hex-encoded script
  - reqSigs: Required signatures
  - type: Script type
  - addresses: Array of Bitcoin addresses
blockhash: The block hash containing this transaction
confirmations: Number of confirmations
time: Block time
blocktime: Block time in seconds since epoch

3.18. Command: Invalidate Block

The invalidateblock command permanently marks a block as invalid, as if it violated a consensus rule.

Function Overview

Purpose: To manually invalidate a block in the blockchain
Parameters:
- blockhash: The hash of the block to invalidate
Return Value:
- On success: Returns nil, indicating the block was successfully invalidated
- On failure: Returns an error if the block cannot be found or hash is invalid

Process Flow

Request Processing:
- Receives request with block hash
- Validates block hash format
- Initializes tracing and metrics
Block Invalidation:
- Sends invalidation request to blockchain service
- If invalidation fails, returns appropriate error
Response Construction:
- Returns nil on successful invalidation
- Returns error if operation fails

Important Notes

This command should be used with extreme caution as it can cause chain reorganization
Invalidating a block also invalidates all blocks built on top of it

3.19. Command: Is Banned

The isbanned command checks if a specific network address is currently banned from connecting to the node.

Function Overview

Purpose: To determine if a network address is banned from node connections
Parameters:
- address (string, required): The network address to check, e.g. "192.168.0.1" or "192.168.0.0/24"
Return Value:
- On success: Returns a boolean value - true if the address is banned, false if not
- On failure: Returns an error if the address format is invalid

Process Flow

Request Processing:
- Receives request with network address
- Validates address format
- Initializes tracing and metrics
Ban Status Check:
- Queries peer service to check if the address is in the banned list
- Retrieves current ban status and expiration time if banned
Response Construction:
- Returns true if the address is currently banned
- Returns false if the address is not banned
- Returns error if address validation fails

(Success) Response Fields

Returns boolean true if the address is banned
Returns boolean false if the address is not banned

Important Notes

Can be used to check both individual IP addresses and subnets
Address bans may have an expiration time
Works in conjunction with the setban command which is used to add or remove bans

3.20. Command: Reassign

The reassign command allows administrators to change the ownership of a specific UTXO by reassigning it to a new Bitcoin address.

Function Overview

Purpose: To reassign ownership of a specific transaction output (UTXO) to a new Bitcoin address
Parameters:
- txid (string, required): The transaction ID of the output to reassign
- vout (numeric, required): The output index to reassign
- destination (string, required): The Bitcoin address to reassign the UTXO to
Return Value:
- On success: Returns true indicating the UTXO was successfully reassigned
- On failure: Returns an error if the UTXO cannot be found or reassigned

Process Flow

Request Processing:
- Receives request with transaction ID, output index, and destination address
- Validates input parameters
- Initializes tracing and metrics
UTXO and Address Validation:
- Checks if the specified UTXO exists
- Validates the destination address format and network compatibility
Reassignment Operation:
- Creates a new scriptPubKey for the destination address
- Updates the UTXO record with the new ownership information
- Records the reassignment action for auditing purposes
Response Construction:
- Returns true on successful reassignment operation
- Returns error if validation fails or database update fails

(Success) Response Fields

Returns boolean true on successful reassignment operation

Important Notes

Reassigning a UTXO changes its spending conditions without creating a new transaction
This is an administrative function that bypasses normal Bitcoin transaction rules
Should only be used in specific regulatory or recovery scenarios
The operation creates a permanent record in the audit log

3.21. Command: Reconsider Block

The reconsiderblock command removes the invalid status of a block and its descendants, allowing them to be reconsidered for inclusion in the blockchain. This command is typically used to undo the effects of invalidateblock.

Function Overview

Purpose: To remove invalid status from a previously invalidated block
Parameters:
- blockhash: The hash of the block to reconsider
Return Value:
- On success: Returns nil, indicating the block was successfully reconsidered
- On failure: Returns an error if the block cannot be found or hash is invalid

Process Flow

Request Processing:
- Receives request with block hash
- Validates block hash format
- Initializes tracing and metrics
Block Reconsideration:
- Sends revalidation request to blockchain service
- If revalidation fails, returns appropriate error
Response Construction:
- Returns nil on successful reconsideration
- Returns error if operation fails

Important Notes

This command removes the invalid status set by invalidateblock
The block and its descendants will be reconsidered for inclusion in the best chain
May trigger chain reorganization if the reconsidered chain has more work

3.22. Command: Send Raw Transaction

The sendrawtransaction RPC command in Bitcoin RPC is used to submit a pre-signed raw transaction to the network. This command broadcasts the raw transaction hex to the connected nodes in the blockchain network for inclusion in a block.

Function Overview

Purpose: To submit a raw, serialized, and hex-encoded transaction to the blockchain network.
Parameters:
- cmd: Contains the raw transaction data and any command-specific parameters.
- closeChan: A channel that signals the function to close and stop processing, used for graceful shutdowns and interruption handling.
Return Value:
- On success: Returns a result (e.g., transaction ID or confirmation message) indicating that the transaction was successfully broadcast.
- On failure: Returns an error detailing why the transaction could not be processed or broadcast.

Process Flow

Input Parsing:
- The function receives a command (bsvjson.SendRawTransactionCmd) which includes the hex-encoded string of the transaction.
- It checks if the hexadecimal string has an odd length and prepends a "0" if necessary to ensure correct decoding.
Hex Decoding:
- Attempts to decode the hexadecimal string into bytes.
- If decoding fails, it returns an error using rpcDecodeHexError, indicating the hex string was malformed.
Transaction Deserialization:
- Attempts to construct a transaction object from the decoded bytes using a transaction parsing library (assumed to be bt.NewTxFromBytes).
- If the transaction cannot be parsed, it returns an error stating the transaction is deserializable, indicating structural issues with the transaction data.
Transaction Distribution Setup:
- Initializes a Distributor object responsible for handling the broadcasting of transactions to the Propagation servers.
- If the distributor cannot be created (due to configuration errors, connection issues, etc.), it returns an initialization error.
Transaction Broadcasting:
- Calls a method (d.SendTransaction) on the distributor to send the transaction to the network.
- If broadcasting fails, it returns an error indicating that the transaction was rejected along with a message detailing the reason (e.g., network errors, validation failures on the network side).
Success Response:
- If the transaction is successfully broadcast, the function returns a success response, which includes the transaction ID of the broadcast transaction

3.23. Command: Set Ban

The setban command adds or removes an IP address or subnet from the banned list. This command is used for network management and peer control.

Function Overview

Purpose: To manage banned IP addresses/subnets
Parameters:
- ipOrSubnet: The IP/Subnet to ban/unban (e.g., "192.168.0.6" or "192.168.0.0/24")
- command: "add" to add a ban, "remove" to remove a ban
- bantime: Time in seconds for how long the IP is banned (optional)
- absolute: If true, bantime is interpreted as an absolute timestamp (optional)
Return Value:
- On success: Returns nil
- On failure: Returns an error if parameters are invalid or operation fails

Process Flow

Request Processing:
- Receives request with IP/subnet and command
- Validates input parameters
- Initializes tracing and metrics
Ban List Management:
- Retrieves current ban list
- Processes add/remove command
- Updates ban list accordingly
Response Construction:
- Returns nil on successful operation
- Returns error if operation fails

Important Notes

For "add" command:
- If bantime is 0, defaults to 24 hours
- If absolute is true, bantime is treated as Unix timestamp
- The IP/subnet format must be valid
- Removing a non-existent ban is considered an error

3.24. Command: Stop

The stop command initiates a clean shutdown of the node, stopping all services in an orderly fashion.

Function Overview

Purpose: To safely shut down the node and all its services
Parameters: None
Return Value:
- On success: Returns a string message indicating the node is stopping
- The actual shutdown process happens asynchronously after the response is sent

Process Flow

Request Processing:
- Receives stop request
- No parameters to validate
- Initializes tracing and metrics
Shutdown Initiation:
- Logs shutdown request
- Sets internal shutdown flag
- Signals main process to initiate shutdown sequence
Response Construction:
- Returns confirmation message that shutdown has been initiated
- Actual shutdown happens in the background after response is sent
Shutdown Sequence (happens after response):
- Services are stopped in reverse order of initialization
- Connections are gracefully closed
- Data is persisted where necessary
- Process exits

(Success) Response Fields

Returns string message: "Bitcoin server stopping"

Important Notes

This is an administrative command that should be restricted to authorized users
The node will complete the shutdown process even after sending the RPC response
Any pending operations may be completed or aborted depending on their nature
Clients should expect to lose connection to the node shortly after receiving the response

3.25. Command: Submit Mining Solution

The submitminingsolution RPC command in Bitcoin RPC is used to submit a mining solution to the network. This command allows miners to propose a potential new block to be added to the blockchain.

Function Overview

Purpose: To submit a mining solution, which represents a potential new block, for validation and inclusion in the blockchain.
Parameters:
- cmd: Contains the JSON string of the mining solution and any command-specific parameters.
- closeChan: A channel that signals the function to close and stop processing, used for graceful shutdowns and interruption handling.
Return Value:
- On success: Returns nil, indicating that the mining solution was successfully submitted.
- On failure: Returns an error detailing why the mining solution could not be processed or submitted.

Process Flow

Command Parsing:
- The function receives a command (bsvjson.SubmitMiningSolutionCmd) which includes a JSON string representing the mining solution.
JSON Unmarshaling:
- Attempts to unmarshal the JSON string into a model.MiningSolution struct.
- If unmarshaling fails, it returns an error, indicating that the JSON string was malformed or incompatible with the expected structure.
Solution Submission:
- Calls the SubmitMiningSolution method on the blockAssemblyClient to submit the mining solution to the Block Assembly.
- The Block Assembly validates the solution and, if successful, propagates it to other nodes in the network.
- If submission fails, it returns an error indicating why the solution was rejected (e.g., invalid solution, network errors).

(Success) Response Fields

Returns nil on success

3.26. Command: Unfreeze

The unfreeze command removes the freeze status from a previously frozen UTXO, allowing it to be spent again in transactions.

Function Overview

Purpose: To remove the frozen status from a specific transaction output (UTXO)
Parameters:
- txid (string, required): The transaction ID of the frozen output
- vout (numeric, required): The output index to unfreeze
Return Value:
- On success: Returns true indicating the UTXO was successfully unfrozen
- On failure: Returns an error if the UTXO cannot be found or unfrozen

Process Flow

Request Processing:
- Receives request with transaction ID and output index
- Validates input parameters
- Initializes tracing and metrics
UTXO Validation:
- Checks if the specified UTXO exists
- Validates that the UTXO is currently frozen
Unfreezing Operation:
- Removes the frozen status from the UTXO in the state database
- Records the unfreezing action for auditing purposes
Response Construction:
- Returns true on successful unfreeze operation
- Returns error if validation fails or database update fails

(Success) Response Fields

Returns boolean true on successful unfreeze operation

Important Notes

Only previously frozen UTXOs can be unfrozen
After unfreezing, the UTXO becomes available for spending in transactions
This operation is an administrative function that should be used with appropriate authorization

3.27. Command: Version

The version command is used to retrieve the version information of the RPC server. The RPC server processes this command by constructing a response with the server version information and returning it to the client.

(Success) Response Fields

btcdjsonrpcapi: Object containing version information
- versionString: Semantic version string
- major: Major version number
- minor: Minor version number
- patch: Patch version number

4. Technology

HTTP Server and RESTful API

Usage: In Server.go, an HTTP server is set up to listen for requests and send responses.
Functionality: Handling HTTP requests and responses, as well as routing, middleware support.

Authentication and Security

Basic Authentication: Handling basic HTTP authentication to secure server access.

5. Directory Structure and Main Files

The RPC service is located in the services/rpc directory. The main files and directories are as follows:

./servers/rpc
├── Server.go          # Main server application file: Initializes and runs the server, sets up configurations, and handles lifecycle events.
└── handlers.go        # Request handlers: Defines functions that process incoming requests based on type and content.

6. Configuration Settings

The RPC service relies on a set of configuration settings that control its behavior, security, and performance. This section provides a comprehensive overview of these settings, organized by functional category, along with their impacts, dependencies, and recommended configurations for different deployment scenarios.

6.1 Configuration Categories

RPC service settings can be organized into the following functional categories:

Authentication & Security: Settings that control user access and authentication mechanisms
Network Configuration: Settings that determine how the service binds to network interfaces
Performance & Scaling: Settings that manage resource usage and connection handling
Compatibility: Settings that control backward compatibility with legacy clients

6.2 Authentication & Security Settings

These settings control access to the RPC service, implementing a two-tier authentication system with full and limited access.

Setting	Type	Default	Description	Impact
`rpc_user`	string	`""` (empty string)	Username for RPC authentication with full access	Controls who can access the RPC service with full permissions; required for secure deployments
`rpc_pass`	string	`""` (empty string)	Password for RPC authentication with full access	Controls authentication for full access; required for secure deployments
`rpc_limit_user`	string	`""` (empty string)	Username for RPC authentication with limited access	Controls who can access the RPC service with limited permissions; optional but recommended
`rpc_limit_pass`	string	`""` (empty string)	Password for RPC authentication with limited access	Controls authentication for limited access; optional but recommended

Authentication Interactions and Dependencies

The RPC service implements a two-tier authentication system:

Full Access: Authenticated using rpc_user and rpc_pass, grants access to all RPC commands including sensitive operations like stop and administrative functions
Limited Access: Authenticated using rpc_limit_user and rpc_limit_pass, grants access to a subset of commands, restricting sensitive operations

For security, credentials must be set explicitly as they default to empty strings. The service will not start if no authentication is configured, as this would leave the RPC interface unsecured.

6.3 Network Configuration Settings

These settings control how the RPC service binds to network interfaces and accepts connections.

Setting	Type	Default	Description	Impact
`rpc_listener_url`	*url.URL	`nil`	URL where the RPC service listens for connections, in format "http://hostname:port"	Controls which network interface and port the service binds to; critical for accessibility and security

Network Configuration Interactions and Dependencies

The rpc_listener_url setting determines both the binding interface and port. For example:

http://localhost:8332 binds to the local interface only, allowing connections only from the same machine
http://0.0.0.0:8332 binds to all interfaces, allowing remote connections if the machine is network-accessible

This setting has significant security implications. In production environments, the RPC service should typically only bind to local interfaces unless remote RPC access is explicitly required.

6.4 Performance & Scaling Settings

These settings control resource usage and the service's ability to handle multiple simultaneous clients.

Setting	Type	Default	Description	Impact
`rpc_max_clients`	int	`1`	Maximum number of concurrent RPC client connections allowed	Limits resource usage; prevents overload from too many simultaneous connections

Performance Scaling Interactions and Dependencies

The rpc_max_clients setting directly impacts server resource usage. When the limit is reached, new connections are rejected with a 503 Service Unavailable response. This setting should be adjusted based on:

Available server resources (CPU, memory, network capacity)
Expected client load patterns
Complexity of RPC requests (some operations are more resource-intensive)

The default value is conservative to prevent resource exhaustion in default configurations.

6.5 Compatibility Settings

These settings control the service's behavior when dealing with legacy Bitcoin clients.

Setting	Type	Default	Description	Impact
`rpc_quirks`	bool	`true`	Enables backward compatibility quirks for legacy Bitcoin RPC clients	Affects how responses are formatted; enables legacy behavior for older clients

Compatibility Interactions and Dependencies

The rpc_quirks setting primarily affects response formatting and error handling behavior:

When enabled, responses may include additional fields or formatting to maintain compatibility with older clients
When disabled, responses strictly follow current Bitcoin RPC standards

This setting should be left enabled unless all clients are confirmed to support modern Bitcoin RPC conventions.

6.6 Configuration Best Practices

Secure Credential Management: Never use default or easily guessable credentials. Consider using environment variables or secure credential storage instead of configuration files for passwords.
Network Security: Unless specifically required, always bind the RPC service to localhost to prevent unauthorized network access.
Connection Limiting: Adjust rpc_max_clients based on your hardware resources and expected load. Monitor connection patterns in production to fine-tune this value.
Tiered Access: Implement the two-tier authentication model, using limited access for applications that only need to read data, and full access for administrative operations.
Load Balancing: For high-volume deployments, consider deploying multiple RPC instances behind a load balancer instead of increasing the connection limit on a single instance.
TLS Encryption: Consider deploying the RPC service behind a TLS-terminating reverse proxy if remote access is required, as the native RPC interface does not support HTTPS.

7. How to run

To run the RPC Service locally, you can execute the following command:

SETTINGS_CONTEXT=dev.[YOUR_USERNAME] go run -RPC=1

Please refer to the Locally Running Services Documentation document for more information on running the RPC Service locally.

8. Other Resources

RPC Reference
