🗑️ Pruner Service

Index

  1. Description
  2. Functionality
  3. Data Model
  4. Technology
  5. Directory Structure and Main Files
  6. How to Run
  7. Configuration Options (Settings Flags)
  8. Other Resources

1. Description

The Pruner service is a standalone microservice responsible for managing UTXO data pruning operations in Teranode. The Pruner operates as an event-driven overlay service that continuously monitors blockchain events and removes stale UTXO data to prevent unbounded database growth.

The Pruner service:

  • Event-Driven: Responds to BlockPersisted notifications instead of polling
  • Standalone: Runs as an independent gRPC service (port 8096)
  • Safety-First: Implements a critical two-phase process to prevent data loss
  • Coordinated: Works with Block Persister to protect transaction data during catchup

The Pruner service ensures that:

  1. Parent transactions of old unmined transactions remain available for resubmission
  2. UTXO records marked for deletion are removed at the appropriate block height
  3. Transaction data remains accessible until Block Persister creates .subtree_data files
  4. External transaction blobs are cleaned up from blob storage (S3/filesystem)

Note: For information about how the Pruner service is initialized during daemon startup and how it interacts with other services, see the Teranode Daemon Reference.

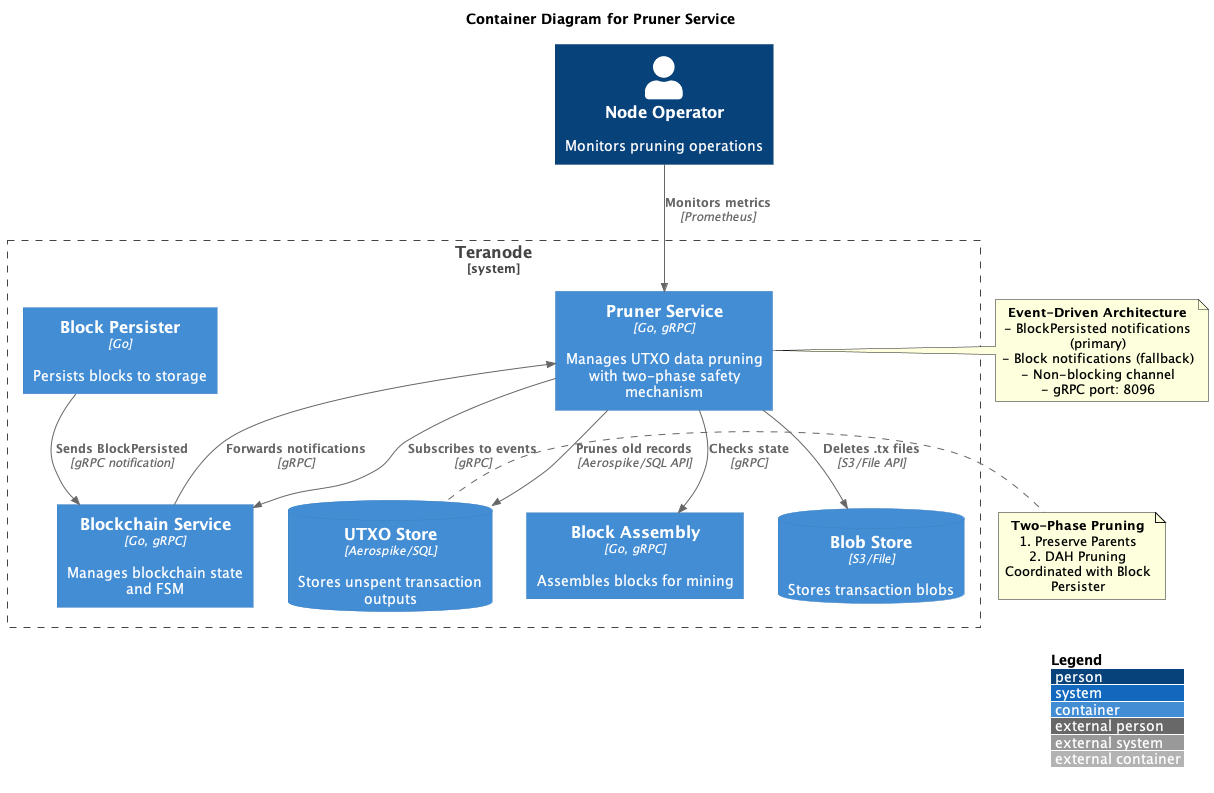

The Pruner service subscribes to blockchain events and coordinates with Block Persister to ensure safe pruning operations.


The Pruner service consists of:

  • Server Component: Manages gRPC server, health checks, and service lifecycle
  • Worker Component: Handles event subscriptions, channel management, and two-phase processing
  • Job Manager: LIFO queue for pruning jobs with worker pool and status tracking
  • Store Implementations: Aerospike and SQL-specific pruning logic

Detailed Component View

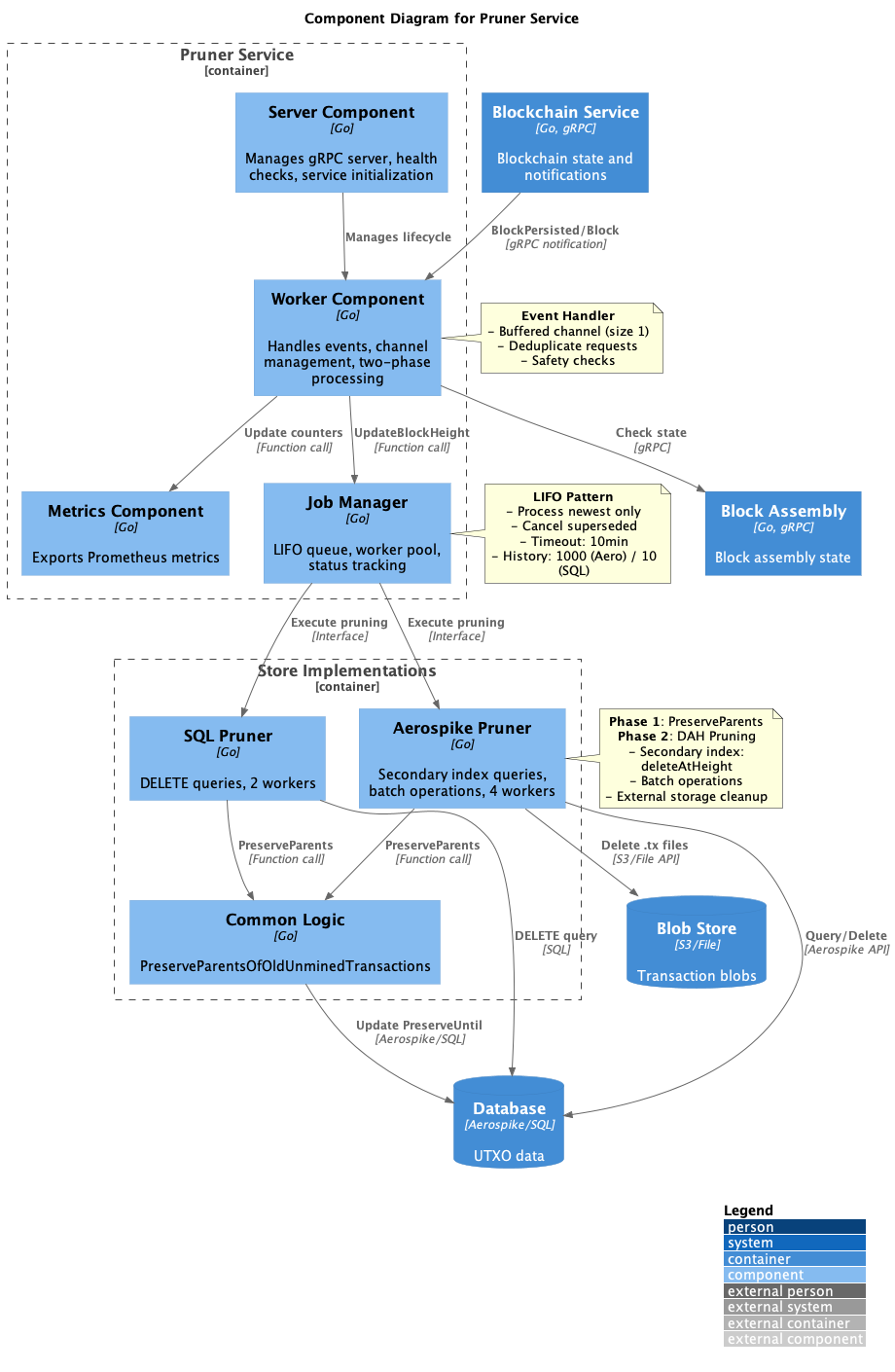

The following diagram provides a deeper level of detail into the Pruner Service's internal components and their interactions:

pruner_detailed_component.svg

2. Functionality

2.1 Service Initialization

pruner_init.svg

The Pruner service initializes through the following sequence:

  1. Load Configuration Settings

    • Reads pruner-specific settings from settings.conf
    • Configures job timeout, gRPC ports, worker counts

  2. Initialize Store Pruner

    • Retrieves store-specific pruner implementation from UTXO Store
    • Aerospike: Initializes secondary index waiter, 4-worker pool
    • SQL: Initializes 2-worker pool with simple DELETE queries

  3. Initialize Service Clients

    • Blockchain Client: For event subscriptions and state queries
    • Block Assembly Client: For state checks before pruning

  4. Start gRPC Server

    • Listens on port 8096 (default)
    • Exposes health check API
    • Registers with Service Manager

  5. Subscribe to Events

    • Primary: BlockPersisted notifications from Block Persister
    • Fallback: Block notifications when Block Persister not running

  6. Ready State

    • Event-driven pruning active
    • Waiting for BlockPersisted events

2.2 Event-Driven Trigger Mechanism

The Pruner service uses an event-driven architecture with two trigger mechanisms:

Primary Trigger: BlockPersisted Notifications

pruner_block_persisted_trigger.svg

When Block Persister is Active:

  1. Block Persister completes block persistence

    • Creates .block, .subtree, .utxo-additions, .utxo-deletions files
    • All transaction data is safely stored in .subtree_data files

  2. Block Persister updates blockchain state

    • Sets BlockPersisterHeight = N
    • Sends BlockPersisted notification with height N

  3. Pruner receives notification

    • Updates lastPersistedHeight = N
    • Knows that blocks up to height N have .subtree_data files

  4. Pruner sends pruning request to buffered channel

    • Channel size: 1 (non-blocking)
    • If channel full: Request dropped (deduplication)
    • If channel available: Request queued

  5. Pruning workflow triggered for height N

Channel Deduplication Logic:

The buffered channel (size 1) ensures that:

  • Only one pruning operation runs at a time
  • During catchup, intermediate heights are skipped
  • Latest height is always processed
  • No blocking or queue buildup

Fallback Trigger: Block Notifications

pruner_fallback_trigger.svg

When Block Persister is NOT Running:

  1. Block Validation completes block validation

    • Block is fully validated and added to blockchain

  2. Blockchain Service sends Block notification

    • Includes mined_set = true flag

  3. Pruner checks lastPersistedHeight

    • If lastPersistedHeight == 0: Block Persister not running
    • If lastPersistedHeight > 0: Ignore (handled by BlockPersisted)

  4. Pruner verifies mined_set == true

    • Ensures block validation completed

  5. Pruning triggered for block height

    • No coordination needed (no .subtree_data files to protect)

2.3 Two-Phase Pruning Process

The Pruner implements a critical two-phase safety mechanism to prevent data loss:

pruner_two_phase_process.svg

Safety Check: Block Assembly State

Before pruning begins, Pruner checks Block Assembly state:

  • State RUNNING: Proceed with pruning
  • State NOT RUNNING: Abort (reorg or reset in progress)

This prevents pruning during blockchain reorganizations when transaction states may be changing.

Phase 1: Preserve Parents (CRITICAL)

pruner_preserve_parents.svg

Purpose: Protect parent transactions of old unmined transactions from deletion

Why This is Critical:

When a transaction remains unmined for a long time, its parent transactions (UTXOs it spends) might be marked for deletion. If the unmined transaction is later resubmitted, it needs those parent transactions to be valid. Without parent preservation, resubmitted transactions would fail validation due to missing inputs.

Process:

  1. Calculate cutoff height

    • cutoffHeight = currentHeight - UnminedTxRetention
    • Default: UnminedTxRetention = BlockHeightRetention / 2

  2. Query for old unmined transactions

    • WHERE unmined_since < cutoffHeight
    • Find transactions older than retention period

  3. For each old unmined transaction:

    • Get transaction metadata (includes inpoints)
    • Extract parent transaction IDs from inpoints

    • For each parent TxID:

      • Update parent: SET PreserveUntil = currentHeight + ParentPreservationBlocks
      • Default: ParentPreservationBlocks = blocksInADayOnAverage * 10 (≈1440 blocks)

  4. Critical Error Handling:

    • If ANY parent update fails: ABORT ENTIRE PRUNING
    • Do NOT proceed to Phase 2
    • Prevents orphaning of resubmitted transactions

  5. Success: All parents preserved

    • Safe to proceed to Phase 2

Store Implementation:

  • Aerospike: Batch operations for efficiency
  • SQL: Individual UPDATE statements
  • Common Logic: PreserveParentsOfOldUnminedTransactions() in /stores/utxo/pruner_unmined.go

Phase 2: DAH (Delete-At-Height) Pruning

pruner_dah_pruning.svg

Purpose: Remove UTXO records marked for deletion at specific block heights

Process:

  1. Job Manager receives UpdateBlockHeight(height) request

  2. Calculate safe height for deletion

    • Get persistedHeight from Block Persister coordination
    • safeHeight = min(currentHeight, persistedHeight)
    • Ensures transaction data is in .subtree_data files before deletion

  3. Create pruning job

    • Job includes safeHeight for deletion
    • Added to job queue with LIFO prioritization

  4. Cancel superseded jobs

    • Only newest pending job is processed
    • Older jobs are marked as Cancelled

  5. Worker pool executes pruning

    • Aerospike: Query with filter deleteAtHeight <= safeHeight using secondary index
    • SQL: DELETE FROM utxos WHERE delete_at_height <= safeHeight

  6. For each record to delete:

    • If external transaction data exists:

      • Delete .tx file from Blob Store (S3/filesystem)
        • Delete UTXO record from database
        • Update metrics: utxo_cleanup_batch_duration_seconds

  7. Job completion

    • Timeout (10 minutes): Non-error, job continues in background
    • Success: Job marked as Completed

  8. Pruner updates metrics

    • pruner_duration_seconds{operation="dah_pruner"}
    • pruner_processed_total

Worker Pool Configuration:

  • Aerospike: 4 workers (default), concurrent batch operations
  • SQL: 2 workers (default), simpler DELETE queries

2.4 Coordination with Block Persister

Critical coordination mechanism to prevent premature deletion of transaction data:

pruner_coordination.svg

The Problem:

Block Persister creates .subtree_data files containing transaction data needed for catchup nodes to replay blocks. If Pruner deletes transactions before these files are created, catchup nodes cannot recover the data.

The Solution:

  1. Block Persister Signals Completion:

    • After creating all files for block N:

      • Updates: BlockPersisterHeight = N
      • Sends: BlockPersisted notification

  2. Pruner Tracks Persisted Height:

    • Receives BlockPersisted notification
    • Updates: lastPersistedHeight = N

  3. Store-Level Safe Height Calculation:

    • Store Pruner gets persistedHeight from Pruner service
    • Calculates: safeHeight = min(currentHeight, persistedHeight)

  4. Example Scenario:

    • Current blockchain height: 100
    • Block Persister at height: 95 (creating files for blocks 96-100)
    • safeHeight = min(100, 95) = 95
    • Result: Only prune records with deleteAtHeight <= 95
    • Blocks 96-100 protected until .subtree_data files created

  5. Without Block Persister:

    • persistedHeight = 0 (Block Persister not running)
    • safeHeight = min(100, 0) = 0 → Uses currentHeight
    • No .subtree_data files to protect
    • Safe to prune at current height

Benefits:

  • Data Integrity: Transaction data available until safely persisted
  • Catchup Support: Nodes can replay blocks from .subtree_data files
  • Graceful Degradation: Works with or without Block Persister

2.5 Job Queue Management

pruner_job_queue.svg

LIFO (Last In, First Out) Pattern:

The Pruner uses a LIFO queue to efficiently handle pruning during catchup:

Why LIFO?

During blockchain catchup, blocks arrive rapidly. Processing every intermediate height is wasteful. LIFO ensures:

  • Only the newest pending job is processed
  • Intermediate heights are skipped automatically
  • Efficient pruning during catchup

Job States:

  1. Pending: Waiting for worker
  2. Running: Currently being processed
  3. Completed: Successfully finished
  4. Failed: Error occurred
  5. Cancelled: Superseded by newer job

Job Lifecycle:

  1. New job arrives (height 100)

    • Added to queue with status Pending
    • All workers busy

  2. Another job arrives (height 101)

    • Added to queue with status Pending
    • Job Manager finds superseded jobs
    • Job(100) status changed to Cancelled

  3. Worker becomes available

    • Gets newest pending job: Job(101)
    • Job(101) status → Running
    • Worker executes pruning for height 101

  4. Job completes

    • Job(101) status → Completed
    • Metrics updated

Job History Retention:

  • Aerospike: Last 1000 jobs
  • SQL: Last 10 jobs
  • Older jobs automatically removed

Timeout Handling:

  • Default timeout: 10 minutes

  • On timeout:

    • Coordinator moves on (non-error)
    • Job continues in background
    • Will be re-queued if needed

3. Data Model

The Pruner service operates on the UTXO data model. Please refer to the UTXO Data Model documentation for detailed information.

Key Fields for Pruning

Delete-At-Height (DAH)

  • Field: DeleteAtHeight (uint32)
  • Purpose: Marks when a UTXO record should be deleted
  • Set By: UTXO Store during transaction spending or coinbase maturity
  • Queried By: Pruner during Phase 2 (DAH Pruning)
  • Index: Aerospike secondary index on deleteAtHeight field

Example:

type UTXO struct {
    TxID           *chainhash.Hash
    Index          uint32
    Value          uint64
    Height         uint32
    Script         []byte
    Coinbase       bool
    DeleteAtHeight uint32  // Pruner queries this field
    // ... other fields
}

PreserveUntil

  • Field: PreserveUntil (uint32)
  • Purpose: Protects parent transactions from deletion
  • Set By: Pruner during Phase 1 (Preserve Parents)
  • Value: currentHeight + ParentPreservationBlocks
  • Effect: Prevents deletion even if DeleteAtHeight reached

UnminedSince

  • Field: UnminedSince (uint32)
  • Purpose: Tracks how long a transaction has been unmined
  • Set By: UTXO Store when transaction added
  • Queried By: Pruner to find old unmined transactions
  • Used In: Phase 1 to identify transactions needing parent preservation

External Transaction Data

For large transactions stored externally:

  • Location: Blob Store (S3 or filesystem)
  • File Extension: .tx
  • Naming: <txid>.tx
  • Deletion: Pruner deletes external file during DAH pruning
  • Store: Aerospike-specific (SQL stores inline)

4. Technology

  • Language: Go 1.25+
  • Communication: gRPC (port 8096), Protocol Buffers
  • Storage: Store-agnostic (Aerospike or SQL via interface)
  • Metrics: Prometheus
  • Concurrency: Goroutines, channels, worker pools
  • Event System: Blockchain service notifications

Dependencies

  • UTXO Store (Aerospike or SQL)
  • Blockchain Service (event subscriptions)
  • Block Assembly Service (state checks)
  • Block Persister (optional, for coordination)
  • Blob Store (S3/filesystem, for external tx cleanup)

Store Implementations

Aerospike Implementation

  • Location: /stores/utxo/aerospike/pruner/
  • Secondary Index: Required on DeleteAtHeight field
  • Query: Filter expression deleteAtHeight <= safeHeight
  • Workers: 4 goroutines (configurable)
  • Batch Operations: Efficient parent updates
  • External Storage: Deletes .tx files from blob store
  • Max Job History: 1000 jobs

SQL Implementation

  • Location: /stores/utxo/sql/pruner/
  • Query: Simple DELETE WHERE delete_at_height <= ?
  • Workers: 2 goroutines (configurable)
  • No External Dependencies: All data inline
  • Max Job History: 10 jobs

5. Directory Structure and Main Files

/services/pruner/               # Standalone microservice
├── server.go                   # Service initialization, gRPC, health checks
├── worker.go                   # Pruning processor, two-phase logic, event handler
├── metrics.go                  # Prometheus metrics
└── pruner_api/
    ├── pruner_api.proto        # gRPC API definition
    ├── pruner_api.pb.go        # Generated protobuf code
    └── pruner_api_grpc.pb.go   # Generated gRPC code

/stores/pruner/                 # Generic store-agnostic components
├── interfaces.go               # Service and provider interfaces
├── job.go                      # Job definition and states
├── job_processor.go            # Job queue and worker management
├── job_processor_test.go
└── example/
    └── example_service.go      # Example implementation

/stores/utxo/aerospike/pruner/  # Aerospike-specific implementation
├── pruner_service.go           # Aerospike pruner service (900+ lines)
├── pruner_service_test.go
├── index_waiter.go             # Index readiness checker
├── mock_index_waiter_test.go
└── README.md                   # Aerospike pruner documentation

/stores/utxo/sql/pruner/        # SQL-specific implementation
├── pruner_service.go           # SQL pruner service
├── pruner_service_test.go
└── mock.go

/stores/utxo/                   # Store-agnostic utility
└── pruner_unmined.go           # PreserveParentsOfOldUnminedTransactions()

Key Files

  • server.go: Service lifecycle, gRPC server, health checks
  • worker.go: Event handling, channel management, two-phase processing
  • metrics.go: Prometheus metric definitions
  • interfaces.go: Store-agnostic interfaces for pruner implementations
  • job_processor.go: Generic job queue with LIFO pattern and worker pool
  • aerospike/pruner/pruner_service.go (900+ lines): Complete Aerospike implementation
  • sql/pruner/pruner_service.go: Simplified SQL implementation

6. How to Run

To run the Pruner Service locally, you can execute the following command:

SETTINGS_CONTEXT=dev.[YOUR_CONTEXT] go run . -pruner=1

Please refer to the Locally Running Services Documentation document for more information on running the Pruner Service locally.

7. Configuration Options (Settings Flags)

For complete settings reference, see Pruner Settings Reference.

Core Settings

Setting Type Default Description
startPruner bool true Enable/disable Pruner service
pruner_grpcPort int 8096 gRPC server port
pruner_jobTimeout duration 10m Timeout for pruning job completion

UTXO Store Settings

Setting Type Default Description
utxostore_unminedTxRetention uint32 globalBlockHeightRetention/2 Blocks to retain unmined transactions
utxostore_parentPreservationBlocks uint32 blocksInADayOnAverage*10 Blocks to preserve parent transactions (≈14400)
utxostore_prunerMaxConcurrentOperations int Connection pool size Max concurrent Aerospike operations
utxostore_disableDAHCleaner bool false Disable DAH pruning (testing only)

Context-Specific Settings

# Development
pruner_grpcAddress.dev = localhost:8096

# Docker
pruner_grpcAddress.docker.m = pruner:8096
pruner_grpcAddress.docker = ${clientName}:8096

# Kubernetes/Operator
pruner_grpcAddress.operator = k8s:///pruner.${clientName}.svc.cluster.local:8096

# Disable for specific nodes
startPruner.docker.host.teranode1 = false
startPruner.docker.host.teranode2 = false

8. Other Resources

API Reference

Code Reference

Metrics Documentation

For Prometheus metrics details, see Prometheus Metrics Reference.

Call Graph Visualization

For visual representation of the Pruner service's function call patterns, see the Call Graphs documentation.
