UTXO Data Model

For every transaction, a UTXO record is stored in the database. The record contains the following fields:

Field Name Data Type Description
utxos Array of Byte[32] or Byte[68] A list of UTXOs stored as variable-length byte arrays. Each unspent UTXO is 32 bytes (UTXO hash only). Each spent UTXO is 68 bytes: 32-byte UTXO hash + 36-byte spending data (32-byte spending transaction ID + 4-byte little-endian input index).
utxoSpendableIn Map<Integer, Integer> A map where the key is the UTXO offset and the value is the block height after which the UTXO is spendable.
recordUtxos Integer Total number of UTXOs in this record.
spentUtxos Integer Number of UTXOs that have been spent in this record.
frozen Boolean Indicates whether the UTXO or transaction is frozen.
locked Boolean Indicates whether the transaction outputs can be spent. Part of the two-phase commit protocol. Set to true during initial creation when the transaction is validated. Set to false in two scenarios: (1) after successful addition to block assembly, or (2) when mined via SetMinedMulti. See Two-Phase Commit Process for complete workflow.
spendingDatas []*spendpkg.SpendingData Array tracking which transactions spent which outputs. Each element corresponds to an output index and contains the spending transaction ID and input index. Nil for unspent outputs. Critical for validation and reorganization handling.
conflicting Boolean Indicates whether this transaction is a double spend.
conflictingChildren Array<chainhash.Hash> List of transaction hashes that spend from this transaction and are also marked as conflicting.
unminedSince uint32 When set to a non-zero block height, indicates the transaction is unmined on the longest chain and tracks when it was first stored. When 0 (zero), indicates the transaction has been mined on the longest chain. Enables transaction recovery after service restarts.
createdAt Integer (Timestamp) The timestamp when the unmined transaction was first added to the store. Used for ordering transactions during recovery.
preserveUntil Integer (Block Height) Specifies a block height until which a transaction should be preserved from deletion. Used to protect parent transactions of unmined transactions from being deleted during cleanup operations.
spendingHeight uint32 For coinbase transactions, stores the block height after which outputs become spendable. BSV enforces a 100-block maturity period, so this is set to coinbase_block_height + 100. Zero for non-coinbase transactions.
blockIDs Array<Integer> List of block IDs that reference this UTXO.
blockHeights Array<uint32> List of block heights where this transaction appears. Used by the validator to identify the height at which a UTXO was mined.
subtreeIdxs Array<int> List of subtree indexes where this transaction appears within blocks.
external Boolean Flag indicating whether the transaction is stored externally (used for fetching external raw transaction data).
totalExtraRecs Integer (Optional) The number of UTXO records associated with the transaction, used for pagination.
reassignments Array<Map> Tracks UTXO reassignments. Contains maps with keys such as offset, utxoHash, newUtxoHash, and blockHeight.
tx bt.Tx Object Raw transaction data containing inputs, outputs, version, and locktime.
fee Integer Transaction fee associated with this UTXO.
sizeInBytes Integer The size of the transaction in bytes.
txInpoints TxInpoints Transaction input outpoints containing parent transaction hashes and their corresponding output indices.
isCoinbase Boolean Indicates whether this UTXO is from a coinbase transaction.

Individual UTXO Encoding

Each UTXO in the utxos array uses a variable-length binary encoding that indicates whether the output has been spent.

Unspent UTXO Format (32 bytes)

An unspent UTXO contains only the UTXO hash:

Byte Range Size Field Description
[0:32] 32 bytes UTXO Hash Little-endian hash uniquely identifying this output

Example: A transaction with 5 outputs creates 5 unspent UTXOs, each 32 bytes.

Spent UTXO Format (68 bytes)

When a UTXO is spent, spending data is appended:

Byte Range Size Field Description
[0:32] 32 bytes UTXO Hash Little-endian hash of the original UTXO
[32:64] 32 bytes Spending TX ID Little-endian hash of the transaction that spent this UTXO
[64:68] 4 bytes Input Index Little-endian uint32 indicating which input in the spending transaction consumed this UTXO

Example: When output 0 of transaction A is spent by input 2 of transaction B, the UTXO grows from 32 to 68 bytes, with bytes [32:64] containing transaction B's ID and bytes [64:68] containing 0x02000000 (little-endian 2).

Frozen UTXO Encoding (68 bytes)

Frozen UTXOs (managed by the alert system) use a special spending data pattern:

Byte Range Size Field Description
[0:32] 32 bytes UTXO Hash Original UTXO hash
[32:68] 36 bytes Frozen Marker All 36 bytes set to 0xFF (255)

Detection (from stores/utxo/aerospike/teranode.lua):

local FROZEN_BYTE = 255
local SPENDING_DATA_SIZE = 36

function isFrozen(spendingData)
    if spendingData == nil then return false end
    for i = 1, SPENDING_DATA_SIZE do
        if spendingData[i] ~= FROZEN_BYTE then return false end
    end
    return true
end

Field Extraction

The Lua implementation in stores/utxo/aerospike/teranode.lua extracts fields as follows:

-- Get UTXO from array (Lua arrays are 1-based)
local utxo = utxos[offset + 1]

-- Extract UTXO hash (always present)
local utxoHash = bytes.get_bytes(utxo, 1, 32)

-- Check if spent
if bytes.size(utxo) == 68 then
    -- Extract spending transaction ID
    local spendingTxID = bytes.get_bytes(utxo, 33, 32)

    -- Extract input index
    local inputIndex = bytes.get_bytes(utxo, 65, 4)

    -- Check if frozen
    if isFrozen(spendingData) then
        -- UTXO is frozen by alert system
    end
end

Size-Based State Detection:

  • size == 32 → Unspent
  • size == 68 && !frozen → Spent normally
  • size == 68 && frozen → Frozen by alert system

Additionally, note how the raw transaction data (tx (bt.Tx Object)) is stored in the record. This includes:

  • Version: The transaction version.
  • LockTime: The transaction lock time.
  • Inputs: Array of inputs used in the transaction.
  • Outputs: Array of outputs (UTXOs) created by the transaction.

Time to Live (TTL) Fields

Typically, UTXO records are kept with a time-to-live value that is set when all UTXOs in a record are spent or reassigned.

Field Name Data Type Description
TTL Integer Time-to-live value for the record. Set when:
- All UTXOs in a record are spent or reassigned
- Transaction is marked as conflicting

Aerospike Storage

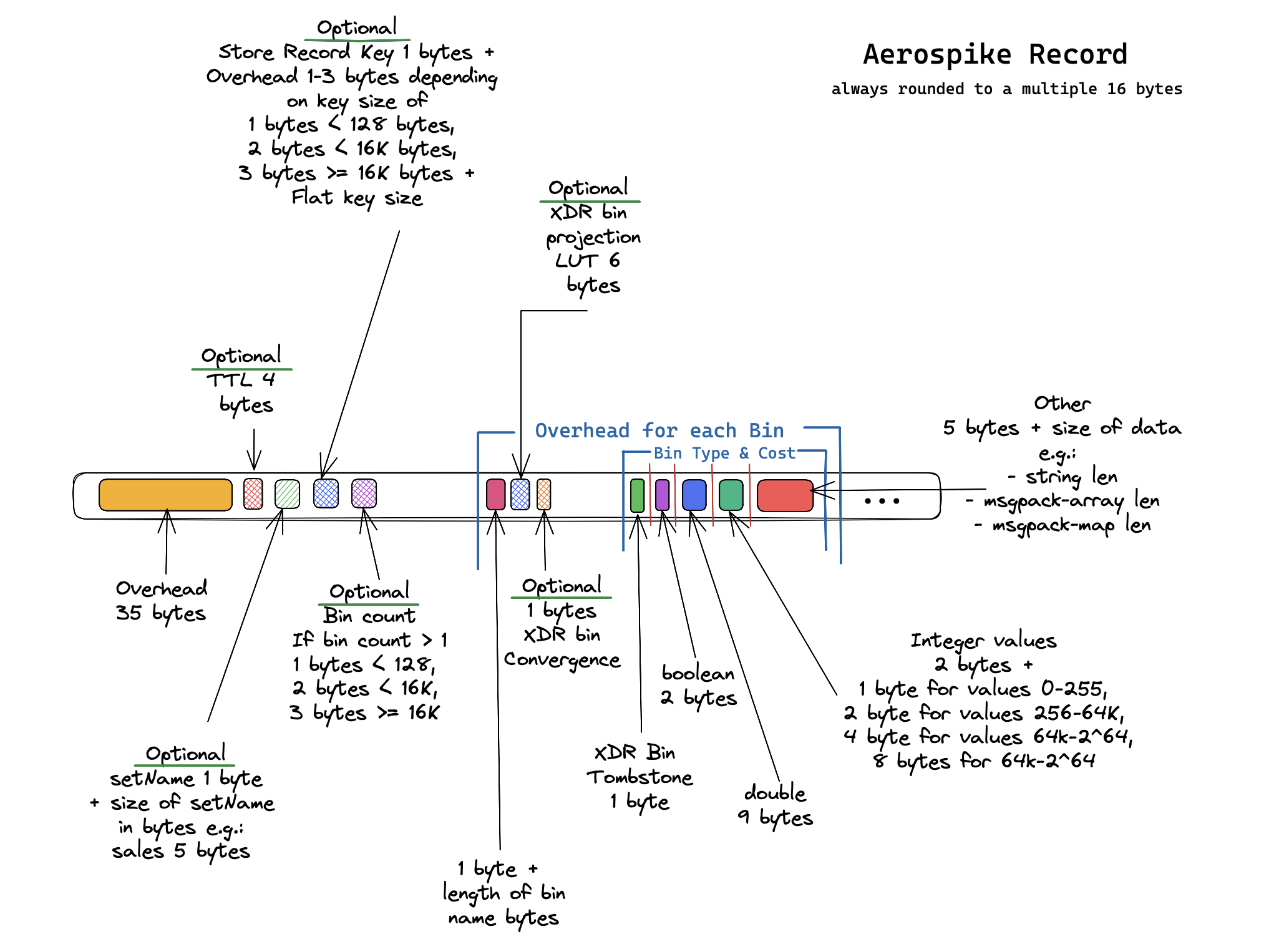

If storing in Aerospike, the UTXO record is stored as a bin in the Aerospike database. The bin contains the UTXO data in a serialized format, containing up to 1024 bytes.


For more information, please refer to the official Aerospike documentation: https://aerospike.com.

UTXO MetaData

For convenience, the UTXO can be decorated using the UTXO MetaData format, widely used in Teranode:

Field Name Description Data Type
Tx The raw transaction data. *bt.Tx Object
Hash Unique identifier for the transaction. String/Hexadecimal
Fee The fee associated with the transaction. Decimal
Size in Bytes The size of the transaction in bytes. Integer
TxInpoints Transaction input outpoints containing parent transaction hashes and their corresponding output indices. TxInpoints Object
BlockIDs List of IDs of the blocks that include this transaction. Array of Integers
BlockHeights List of block heights where this transaction appears. Array of Integers
SubtreeIdxs List of subtree indexes where this transaction appears within blocks. Array of Integers
LockTime The earliest time or block number that this transaction can be included in the blockchain. Integer/Timestamp or Block Number
IsCoinbase Indicates whether the transaction is a coinbase transaction. Boolean
Locked Flag indicating whether the transaction outputs can be spent. Part of the two-phase commit process for block assembly. Boolean
Conflicting Indicates whether this transaction is a double spend. Boolean
ConflictingChildren List of transaction hashes that spend from this transaction and are also marked as conflicting. Array of Strings/Hexadecimals

TxInpoints Structure

External Package: The TxInpoints structure is defined in the external github.com/bsv-blockchain/go-subtree package. The implementation details below are provided for reference and developer convenience.

The TxInpoints field contains complete outpoint information for all transaction inputs, providing precise identification of which UTXOs are being consumed by a transaction.

Structure Definition

type TxInpoints struct {
    ParentTxHashes []chainhash.Hash  // Array of parent transaction hashes
    Idxs           [][]uint32        // Array of arrays containing output indices for each parent transaction
    nrInpoints     int               // Internal variable tracking total number of inpoints
}

Field Descriptions

Field Type Description
ParentTxHashes []chainhash.Hash Array of unique parent transaction hashes from which this transaction consumes UTXOs
Idxs [][]uint32 Parallel array to ParentTxHashes. Each element contains the output indices being consumed from the corresponding parent transaction
nrInpoints int Internal counter tracking the total number of individual outpoints across all parent transactions

Key Features

  1. Complete Outpoint Information: Each input is precisely identified by both the parent transaction hash and the specific output index being consumed.

  2. Efficient Storage: Uses parallel arrays to avoid duplicating parent transaction hashes when multiple outputs from the same transaction are consumed.

  3. Validation Support: Enables validators to quickly determine exactly which UTXOs are being spent without additional lookups.

  4. Chained Transaction Support: Facilitates handling of complex transaction chains where multiple outputs from the same parent transaction are consumed.

Example

For a transaction consuming:

  • Output 0 of transaction A
  • Output 2 of transaction A
  • Output 1 of transaction B

The TxInpoints structure would contain:

ParentTxHashes: [hashA, hashB]
Idxs: [[0, 2], [1]]

This structure efficiently represents that the transaction consumes three UTXOs total: two from transaction A (outputs 0 and 2) and one from transaction B (output 1).

Note:

  • Blocks: 1 or more block hashes. Each block represents a block that mined the transaction.

  • Typically, a tx should only belong to one block. i.e. a) a tx is created (and its meta is stored in the UTXO store) and b) the tx is mined, and the mined block hash is tracked in the UTXO store for the given transaction.

  • However, in the case of a fork, a tx can be mined in multiple blocks by different nodes. In this case, the UTXO store will track multiple block hashes for the given transaction, until such time that the fork is resolved and only one block is considered valid.

  • Block Heights and Subtree Indexes: These fields track the exact location of transactions within the blockchain.

    • The block heights array is particularly important for validation, as it gives visibility on what height a UTXO was mined. While most UTXOs are mined at the same height across parallel chains or forks, this is not always the case. Storing this information enables the validator to efficiently determine the height of UTXOs being spent without performing expensive lookups. Block heights indicate how deep in the chain a transaction is, which is important for maturity checks.
    • The subtree indexes are primarily informational, allowing for future features that might need to locate exactly where a transaction was placed within a block's structure, enabling potential parallel processing and efficient lookups.

UTXO State Lifecycle

A UTXO progresses through multiple states during its lifecycle, from creation through spending to eventual cleanup. Understanding these states is critical for implementing consensus rules, validation logic, and cleanup operations.

State Overview

State Key Indicators Description
Created & Locked locked=true, unminedSince>0, blockIDs=[] Transaction validated and stored, outputs not yet spendable. Part of two-phase commit protocol.
Unlocked & Unmined locked=false, unminedSince>0, blockIDs=[] Transaction outputs spendable but not yet mined in a block.
Mined unminedSince=0, blockIDs populated Transaction included in a block on the longest chain. UTXOs become permanently spendable (subject to maturity rules).
Unspent UTXO size = 32 bytes Output has not been consumed by any transaction.
Spent UTXO size = 68 bytes, not frozen Output consumed by another transaction. Contains spending transaction ID and input index.
Frozen UTXO size = 68 bytes, frozen pattern (0xFF) Output frozen by alert system. Cannot be spent until unfrozen.
Conflicting conflicting=true Transaction is a double-spend attempt. All outputs marked as invalid.
Scheduled for Deletion deleteAtHeight set All outputs spent or transaction conflicting. Will be deleted at specified block height.

State Transitions

The following table shows valid state transitions and their triggers:

From State To State Trigger Implementation
Created & Locked Unlocked & Unmined Block assembly completion or explicit unlock SetLocked(false) in stores/utxo/aerospike/locked.go
Unlocked & Unmined Mined Transaction included in block on longest chain SetMinedMulti() in stores/utxo/aerospike/set_mined.go
Mined Unlocked & Unmined Block reorganization removes tx from longest chain SetMinedMulti() with UnsetMined=true
Unspent (32B) Spent (68B) UTXO consumed by validated transaction Spend() in stores/utxo/aerospike/spend.go
Spent (68B) Unspent (32B) Block reorganization or validation rollback Unspend() in stores/utxo/aerospike/un_spend.go
Any Frozen Alert system freeze command FreezeUTXO() in stores/utxo/aerospike/alert_system.go
Frozen Unspent or Spent Alert system unfreeze command UnfreezeUTXO() in stores/utxo/aerospike/alert_system.go
Any Conflicting Double-spend detected ProcessConflicting() in stores/utxo/process_conflicting.go
Any Scheduled for Deletion All UTXOs spent or tx conflicting Lua script signals in stores/utxo/aerospike/teranode.lua

Detailed State Descriptions

Created & Locked State

When a transaction is first validated and stored:

  • locked field is set to true during Create() operation
  • unminedSince field is set to current block height
  • blockIDs, blockHeights, subtreeIdxs arrays are empty
  • Outputs cannot be spent while in this state
  • Part of the two-phase commit protocol for block assembly
  • Prevents race conditions where transactions are spent before block assembly completes

Exit conditions:

  • Successful block assembly → SetLocked(false) → transitions to Unlocked & Unmined
  • Transaction mined via SetMinedMulti() → automatically unlocks and transitions to Mined

Unlocked & Unmined State

After unlock but before mining:

  • locked=false, allowing outputs to be spent
  • unminedSince still set to block height when first stored
  • blockIDs array still empty
  • Outputs can be spent by other transactions
  • Enables transaction chains where child transactions spend parent outputs before mining

Exit conditions:

  • Transaction mined → SetMinedMulti() sets unminedSince=0, populates blockIDs
  • Transaction becomes conflicting → marked as double-spend

Mined State

Transaction permanently recorded in blockchain:

  • unminedSince=0 (zero indicates mined)
  • blockIDs array contains at least one block ID
  • blockHeights array contains corresponding block heights
  • subtreeIdxs array contains subtree positions within blocks
  • During forks, arrays may contain multiple entries (one per fork branch)
  • After fork resolution, only longest chain block remains

Special case - Coinbase maturity:

  • Coinbase transactions set spendingHeight = coinbase_block_height + 100
  • Outputs cannot be spent until chain reaches spendingHeight
  • Enforces BSV's 100-block maturity rule for coinbase rewards

Exit conditions:

  • Block reorganization removes block from longest chain → SetMinedMulti() with UnsetMined=true
  • Sets unminedSince back to block height, clears block references

Unspent State (32 bytes)

UTXO has not been consumed:

  • UTXO entry in utxos array is exactly 32 bytes
  • Contains only the UTXO hash (little-endian)
  • Can be spent by any valid transaction (subject to maturity rules)
  • Detection: bytes.size(utxo) == 32 in Lua scripts

Exit conditions:

  • Spend() operation adds 36-byte spending data → transitions to Spent
  • Alert system freeze → spending data set to 0xFF pattern → transitions to Frozen

Spent State (68 bytes)

UTXO consumed by another transaction:

  • UTXO entry grows to 68 bytes total
  • Bytes [0:32]: Original UTXO hash
  • Bytes [32:64]: Spending transaction ID (32 bytes, little-endian)
  • Bytes [64:68]: Input index in spending transaction (4 bytes, little-endian uint32)
  • Detection: bytes.size(utxo) == 68 && !isFrozen() in Lua scripts

Tracking:

  • spentUtxos counter incremented
  • When spentUtxos == recordUtxos, signals LuaSignalAllSpent
  • Triggers DAH (Delete At Height) setting for cleanup

Exit conditions:

  • Block reorganization or validation rollback → Unspend() removes 36-byte spending data
  • Alert system freeze → spending data changed to 0xFF pattern → transitions to Frozen

Frozen State (68 bytes)

UTXO frozen by alert system:

  • UTXO entry is 68 bytes with special pattern
  • Bytes [0:32]: Original UTXO hash
  • Bytes [32:68]: All 36 bytes set to 0xFF (255)
  • Cannot be spent until explicitly unfrozen
  • Spending attempts return LuaErrorCodeFrozen error

  • Detection logic from stores/utxo/aerospike/teranode.lua:

    local FROZEN_BYTE = 255
local SPENDING_DATA_SIZE = 36

function isFrozen(spendingData)
    if spendingData == nil then return false end
    for i = 1, SPENDING_DATA_SIZE do
        if spendingData[i] ~= FROZEN_BYTE then return false end
    end
    return true
end

Conditional freeze:

  • UTXOs can also be frozen until a specific block height using utxoSpendableIn map
  • Spending attempts before the height return LuaErrorCodeFrozenUntil error
  • Automatically unfreezes when blockchain reaches the specified height

Exit conditions:

  • Alert system unfreeze → removes 0xFF pattern, restores previous state

Conflicting State

Transaction marked as double-spend:

  • conflicting=true flag set
  • All outputs become invalid and unspendable
  • conflictingChildren array tracks any transactions that attempted to spend from this conflicting transaction
  • TTL (Time-To-Live) set immediately for cleanup
  • Processed by ProcessConflicting() in stores/utxo/process_conflicting.go

Implications:

  • Cannot transition out of conflicting state (terminal state)
  • Entire transaction tree marked as conflicting
  • Cleanup occurs after TTL expiration

Scheduled for Deletion

Record marked for automatic cleanup:

  • deleteAtHeight field set to specific block height
  • Occurs when all UTXOs in record are spent or reassigned
  • Occurs when transaction marked as conflicting
  • Also set via preserveUntil field to protect parent transactions
  • Aerospike TTL automatically deletes record when blockchain reaches specified height
  • Child pagination records also have DAH set via SetDAHForChildRecords()
  • External blob storage has DAH set via setDAHExternalTransaction()

Triggers:

  • LuaSignalDAHSet signal from Lua scripts when last UTXO spent
  • LuaSignalDAHUnset signal when previously spent UTXO is unspent (reorganization)
  • Formula: deleteAtHeight = currentBlockHeight + blockHeightRetention

Implementation:

  • Main record: DAH set via Lua script during Spend() or SetMined()
  • Pagination records: SetDAHForChildRecords() updates all child records
  • External transactions: setDAHExternalTransaction() updates blob storage metadata

Storage Implementation

UTXO records are stored using different strategies based on transaction size and output count. Teranode uses a hybrid storage approach combining Aerospike key-value store with external blob storage to handle transactions of any size efficiently.

Storage Architecture Overview

Transaction Size Check
         │
         ├──> Small (<1MB, ≤20K outputs)
         │    └──> Single Aerospike Record
         │         ├─ Transaction data (inputs/outputs)
         │         ├─ UTXO array (32 or 68 bytes each)
         │         └─ Metadata (fee, blockIDs, etc.)
         │
         ├──> Medium (≤1MB, >20K outputs)
         │    └──> Multiple Aerospike Records (Pagination)
         │         ├─ Master Record (index 0)
         │         │  ├─ Full transaction data
         │         │  ├─ First 20K UTXOs
         │         │  └─ Metadata + totalExtraRecs
         │         └─ Child Records (index 1, 2, 3...)
         │            ├─ Next 20K UTXOs per record
         │            └─ Subset of metadata
         │
         └──> Large (>1MB or force external)
              └──> External Blob Storage + Aerospike
                   ├─ Blob Storage
                   │  ├─ FileTypeTx (.tx) - Full transaction
                   │  └─ FileTypeOutputs (.outputs) - Outputs only
                   └─ Aerospike Records
                      ├─ external=true flag
                      ├─ UTXO arrays (paginated if >20K)
                      └─ Metadata only (no tx data)

Record Pagination (>20,000 Outputs)

Transactions with more than 20,000 outputs are automatically split across multiple Aerospike records to stay within database size constraints.

Pagination Strategy

  • Batch Size: 20,000 UTXOs per record (configurable via utxoBatchSize setting)
  • Master Record (index 0): Contains first batch of UTXOs plus complete metadata
  • Child Records (index 1+): Contain subsequent UTXO batches with limited metadata

Key Calculation (from stores/utxo/aerospike/create.go):

// Master record key
key = hash(txID)

// Child record keys
keySource = hash(txID + childIndex)  // childIndex = 1, 2, 3...

Master Record (Index 0)

Contains complete transaction metadata and first UTXO batch:

Field Description Presence
tx or external Full transaction data OR external=true flag Always
utxos First 20,000 UTXO entries Always
totalUtxos Total count of ALL UTXOs across all records Always
totalExtraRecs Number of child records (pagination records) If >20K outputs
recordUtxos Number of non-nil UTXOs in THIS record Always
spentUtxos Number of spent UTXOs in THIS record Always
spentExtraRecs Number of child records fully spent If >20K outputs
blockIDs, blockHeights, subtreeIdxs Block references Always
fee, sizeInBytes, isCoinbase, etc. Transaction metadata Always

Child Records (Index 1+)

Contain UTXO batches with minimal metadata:

Field Description Presence
utxos Next 20,000 UTXO entries Always
recordUtxos Number of non-nil UTXOs in THIS child record Always
spentUtxos Number of spent UTXOs in THIS child record Always
deleteAtHeight Cleanup trigger for this record When set
Common metadata Version, locktime, fee, isCoinbase, locked, conflicting Always

Child Record DAH Management:

  • When master record's UTXOs all spent → SetDAHForChildRecords() sets DAH on all children
  • When master record unspentalready → SetDAHForChildRecords() with DAH=0 clears DAH on all children
  • Enables coordinated cleanup of entire transaction across all pagination records

Pagination Example

Transaction with 45,000 outputs splits into 3 records:

Master Record (key = hash(txID), index 0):

  - utxos[0:20000]        // First 20K UTXOs
  - totalUtxos = 45000
  - totalExtraRecs = 2
  - recordUtxos = 20000   // Non-nil in this record
  - spentUtxos = 0
  - spentExtraRecs = 0
  - Full tx data or external=true
  - All metadata fields

Child Record 1 (key = hash(txID+1), index 1):

  - utxos[20000:40000]    // Second 20K UTXOs
  - recordUtxos = 20000
  - spentUtxos = 0
  - Common metadata only

Child Record 2 (key = hash(txID+2), index 2):

  - utxos[40000:45000]    // Final 5K UTXOs
  - recordUtxos = 5000
  - spentUtxos = 0
  - Common metadata only

Retrieval Process (from stores/utxo/aerospike/get.go):

  1. Fetch master record by transaction ID
  2. Read totalExtraRecs to determine number of child records
  3. Loop from index 1 to totalExtraRecs, fetching each child record
  4. Combine UTXOs from all records into single spendingDatas array
  5. Calculate correct offset: baseOffset = recordNum * utxoBatchSize

External Blob Storage

Large transactions exceeding Aerospike size limits are stored in external blob storage (S3, filesystem, or HTTP-accessible storage).

Trigger Conditions

External storage used when:

  • Transaction size > MaxTxSizeInStoreInBytes (typically 1MB)
  • Transaction has >20,000 outputs (automatic with pagination)
  • Configuration forces externalization: ExternalizeAllTransactions=true

File Types

Two file type options for external storage:

File Type Extension Contents Use Case
FileTypeTx .tx Complete serialized transaction (inputs + outputs) Full transactions with <100K outputs
FileTypeOutputs .outputs UTXO wrapper containing only outputs Partial transactions, very large output sets, or when inputs not available

UTXOWrapper Format (FileTypeOutputs):

type UTXOWrapper struct {
    TxID     chainhash.Hash
    Height   uint32
    Coinbase bool
    UTXOs    []*UTXO
}

type UTXO struct {
    Index  uint32      // Output index
    Value  uint64      // Satoshis
    Script []byte      // Locking script
}

Storage Flow

Normal Transactions (from stores/utxo/aerospike/create.go:sendStoreBatch()):

  1. Calculate transaction extended size

  2. If size ≤ 1MB and ≤20K outputs:

    • Store transaction data in Aerospike inputs and outputs bins
    • Store UTXOs in utxos bin
    • Set external=false

    • If size > 1MB:

    • Write transaction to blob storage as .tx file

    • Store only metadata and UTXOs in Aerospike
    • Set external=true flag

Partial Transactions (outputs only):

  1. Create UTXOWrapper with non-nil outputs
  2. Serialize wrapper to bytes
  3. Write to blob storage as .outputs file
  4. Store metadata and UTXO hashes in Aerospike
  5. Set external=true flag

Retrieval from External Storage

Full Transaction Retrieval (from stores/utxo/aerospike/get.go:GetTxFromExternalStore()):

  1. Check external flag in Aerospike record

  2. If true, attempt to fetch from blob storage:

    • Try FileTypeTx first (.tx file)
    • If not found, try FileTypeOutputs (.outputs file)
    • Deserialize transaction or outputs
    • Combine with metadata from Aerospike
    • Return complete transaction data

Caching Strategy:

  • External transaction cache (externalTxCache) caches frequently accessed transactions

  • Cache decisions based on number of active outputs:

    • numberOfActiveOutputs < 2 → Do not cache (single-use)
    • numberOfActiveOutputs ≥ 2 → Cache for reuse
    • OP_RETURN outputs with 0 satoshis excluded from cache size calculation

External DAH Management

When transactions stored externally require cleanup:

// Set DAH in blob storage metadata
setDAHExternalTransaction(ctx, txID, deleteAtHeight)

// Process:
// 1. Try to set DAH on .tx file
// 2. If not found, try .outputs file
// 3. Update blob storage metadata with DAH value
// 4. Blob storage system handles deletion at specified height

Binary Encoding in Aerospike

Transaction components are stored as binary-encoded Aerospike bins for space efficiency.

Input Encoding (Extended Format)

Each input stored with extended data for previous output information:

[Standard Input Data]
  ├─ PreviousTxID (32 bytes)
  ├─ PreviousTxOutIndex (4 bytes, little-endian uint32)
  ├─ ScriptSig (variable length with VarInt prefix)
  └─ Sequence (4 bytes, little-endian uint32)

[Extended Data] (appended to standard input)
  ├─ PreviousTxSatoshis (8 bytes, little-endian uint64)
  └─ PreviousTxScript (variable length with VarInt prefix)
     ├─ If nil: Single 0x00 byte
     └─ If present: VarInt(length) + script bytes

Purpose: Extended format enables validation without additional database lookups for previous output data.

Output Encoding

Standard Bitcoin output serialization:

├─ Satoshis (8 bytes, little-endian uint64)
└─ LockingScript (variable length with VarInt prefix)
   ├─ VarInt(scriptLength)
   └─ Script bytes

Storage Optimization:

  • Nil outputs stored as nil in arrays (not serialized)
  • OP_RETURN outputs with 0 satoshis may be excluded from external storage
  • ShouldStoreOutputAsUTXO() determines which outputs get UTXO entries

UTXO Array Encoding

The utxos bin contains an array of variable-length byte arrays:

utxos = [utxo0, utxo1, utxo2, ...]

Each utxo entry:
  ├─ 32 bytes → Unspent UTXO (hash only)
  └─ 68 bytes → Spent UTXO (hash + spending data)
                or Frozen UTXO (hash + 0xFF pattern)

Array Indexing:

  • Direct correspondence to transaction output indices
  • utxos[i] corresponds to transaction output i
  • Spending lookup: spend.Vout % utxoBatchSize for offset within record

Key Source Calculation

Aerospike keys are calculated to enable efficient lookups and pagination:

Master Record Key

// Direct transaction ID used as key
key = aerospike.NewKey(namespace, setName, txID[:])

Child Record Keys

// Calculated using utility function
keySource = uaerospike.CalculateKeySourceInternal(txID, childIndex)
key = aerospike.NewKey(namespace, setName, keySource)

// Where childIndex = 1, 2, 3... for pagination records

Spend Lookup Keys

// Includes output index for efficient spend checks
keySource = uaerospike.CalculateKeySource(txID, vout, utxoBatchSize)
key = aerospike.NewKey(namespace, setName, keySource)

// Maps vout to correct pagination record automatically

Storage Size Limits

Limit Value Enforcement
Max transaction size in Aerospike 1MB MaxTxSizeInStoreInBytes
UTXOs per Aerospike record 20,000 utxoBatchSize setting
Aerospike record size limit ~1MB Database constraint
External blob size Unlimited Blob storage dependent

Automatic Handling:

  • Transactions exceeding limits automatically use external storage
  • Pagination automatically triggered at 20K output threshold
  • RECORD_TOO_BIG error triggers retry with external storage
  • No application-level size restrictions on individual transactions
