1. Overview

The Teranode Dashboard is a web-based user interface for monitoring and managing Teranode nodes. Built with SvelteKit and TypeScript, it provides real-time visibility into blockchain state, network peers, P2P connections, and administrative operations.

The dashboard connects to the Teranode Asset Server via HTTP and WebSocket APIs to retrieve data and receive live updates about blockchain events, peer status, and system health.

Key Capabilities:

Real-time blockchain state monitoring
FSM (Finite State Machine) management and state transitions
Block invalidation and revalidation
Peer connection and reputation management
Block, transaction, UTXO, and subtree viewing
Merkle proof visualization (BRC-74 BUMP format)
P2P message monitoring and filtering
Fork visualization and chain analysis
WebSocket-based live updates

2. Features

2.1. Home

The home page (/home) provides an overview of the node's current state:

Block Statistics Card:

Block count and transaction count
Maximum chain height
Average block size
Average transactions per block
Transactions per second
Chain work (proof-of-work)
Manual refresh (Ctrl+R keyboard shortcut)

Block Graph:

Interactive visualization of block data
Configurable time periods (24h, 7d, etc.)

2.2. Blockchain Viewer

The viewer page (/viewer) allows inspection of blockchain data with multiple specialized views:

Block Viewer (/viewer/block?q={hash}):

Block details: hash, height, timestamp, miner info
Transaction count and block size
Merkle root and previous block hash
Coinbase transaction details
Subtree structure information
Link to block ancestors

Transaction Viewer (/viewer/tx?q={hash}):

Transaction details: hash, block height, timestamp
Input and output counts
UTXO details for inputs and outputs
Merkle Proof Visualizer: Interactive BRC-74 BUMP (BSV Unified Merkle Path) format visualization

UTXO Viewer (/viewer/utxo?q={hash}:{index}):

Outpoint information (txid:vout)
Value and script pubkey
Spending status
UTXO metadata

Subtree Viewer (/viewer/subtree?q={hash}):

Subtree details and metadata
Merkle tree visualization
List of transactions in subtree

Blocks Table:

Paginated list of recent blocks
Sortable columns
Clickable links to block details

Search Functionality:

Search by block height, block hash, transaction ID, or UTXO outpoint

2.3. P2P Message Monitor

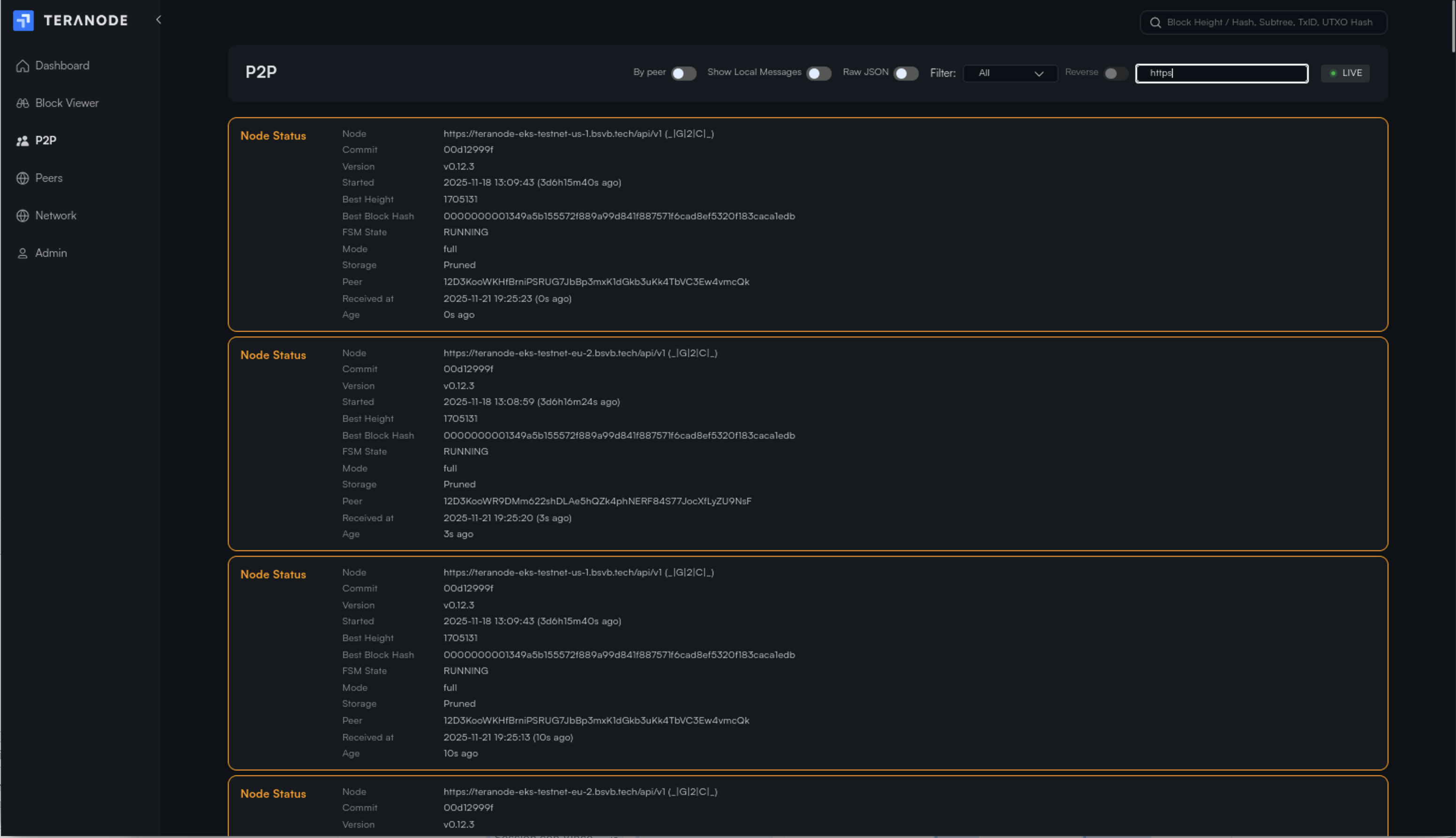

The P2P page (/p2p) provides real-time monitoring of P2P network messages:

Message Capture:

Real-time WebSocket message streaming
Live/Paused toggle for snapshot viewing

Filtering Options:

Filter by message type (dropdown with discovered types)
Reverse filter (exclude specific types)
Free-text search across: type, hash, URL, miner, client_name, peer_id, fsm_state, version
Toggle to show/hide local node messages

View Modes:

By Peer: Messages grouped by peer ID with collapsible sections
By Time: Chronological linear view of all messages

Display Options:

Raw JSON mode toggle
Expandable message content
Connection status indicator
Message count tracking

2.4. Peers

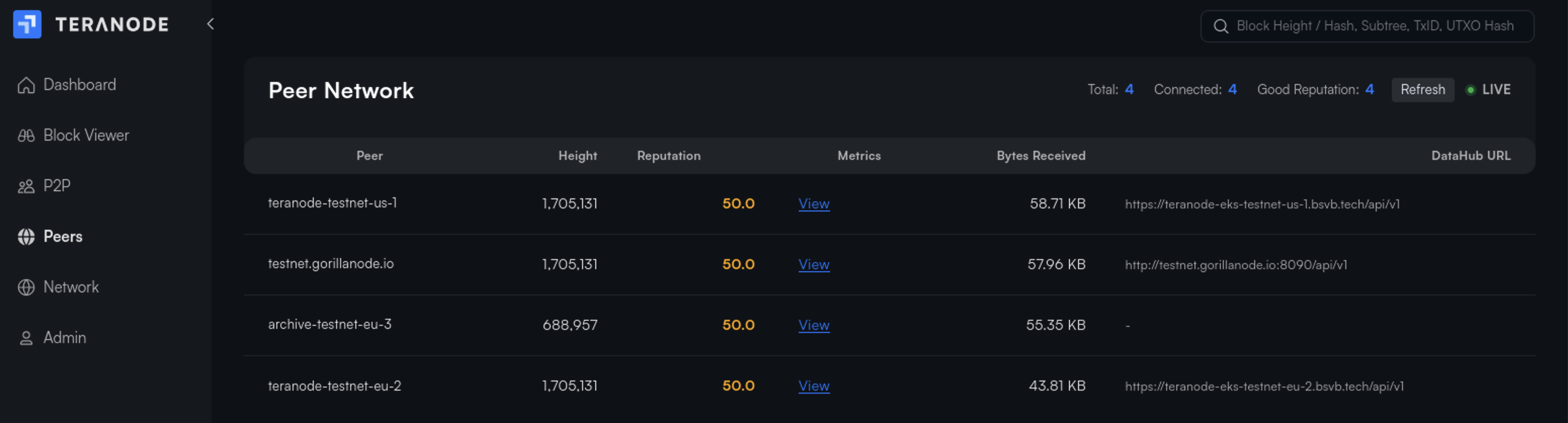

The peers page (/peers) provides comprehensive peer management with the reputation system:

Peer Table:

Column	Description
Peer ID / Client Name	Identifier with tooltip showing full peer ID
Height	Peer's reported blockchain height
Reputation Score	Color-coded score (excellent/good/fair/poor)
Metrics	Link to view detailed catchup metrics
Bytes Received	Data received from peer
DataHub URL	Peer's data hub endpoint

Peer Statistics:

Total peers count
Connected peers count
Good reputation peers count

Features:

Sortable columns (click to sort, reverse toggle)
Configurable pagination (5-100 items per page)
Live status indicator

Catchup Details Modal (click "View" in Metrics column):

Performance Metrics:

Reputation score (0-100)
Success rate percentage
Total attempts, successes, failures
Malicious count
Average response time

Last Activity:

Last attempt timestamp
Last success timestamp
Last failure timestamp
Last catchup error (if any)

Peer Information:

Full peer ID
Client name
Current height
DataHub URL

Catchup Status Bar (shown during blockchain synchronization):

Animated progress indicator
Syncing peer ID and URL
Target block hash and height
Starting height and progress (blocks validated / total)
Progress percentage with visual bar
Fork depth (if syncing a fork)
Common ancestor information
Previous attempt failure details (error type, duration, blocks validated)

2.5. Network Status

The network page (/network) shows connected nodes with real-time WebSocket updates:

Connected Nodes Table:

Column	Description
Client Name	Node identifier (current node highlighted)
Best Height	Node's chain tip height
Best Block Hash	Current best block with miner info
Chain Rank	Chainwork score for ranking
FSM State	Current state machine state
Connected Peers	Number of connected peers
Uptime	Relative uptime display

Features:

Chainwork score calculation for visual ranking
Multiple sort options
Configurable pagination
Live status indicator
Real-time updates via WebSocket

2.6. Forks

The forks page (/forks) displays blockchain fork visualization for a specific block.

Accessing the Forks Page:

This page is accessed from the Block Viewer. When viewing a block's details, click the "forks" link in the Block Details Card to see the fork tree for that block.

Features:

Tree Visualization: Interactive fork tree with configurable orientation (left-to-right, top-to-bottom, etc.)
Fork Explorer: View alternative chain paths branching from the selected block
Responsive Layout: Orientation changes based on device
Interactive Nodes: Click on blocks in the tree to explore

2.7. Admin

The admin page (/admin) provides administrative operations. This page requires authentication.

FSM (Finite State Machine) Management

Current State Display:

Shows blockchain state: IDLE, RUNNING, CATCHING BLOCKS, LEGACY SYNCING, DISCONNECTED

State Transitions:

Event	Description
RUN	Start blockchain processing
STOP	Stop blockchain (transition to IDLE)
CATCHUPBLOCKS	Enter block catchup mode
LEGACYSYNC	Enter legacy sync mode

Dynamic button UI showing available events for current state
Custom event submission

Block Invalidation and Revalidation

Invalidate Block:

Input field for block hash (64 hex characters)
Real-time validation feedback (valid/invalid format)
Mark any block as invalid

Revalidate Block:

Input field for previously invalidated block hash
Re-validate and restore block to valid state

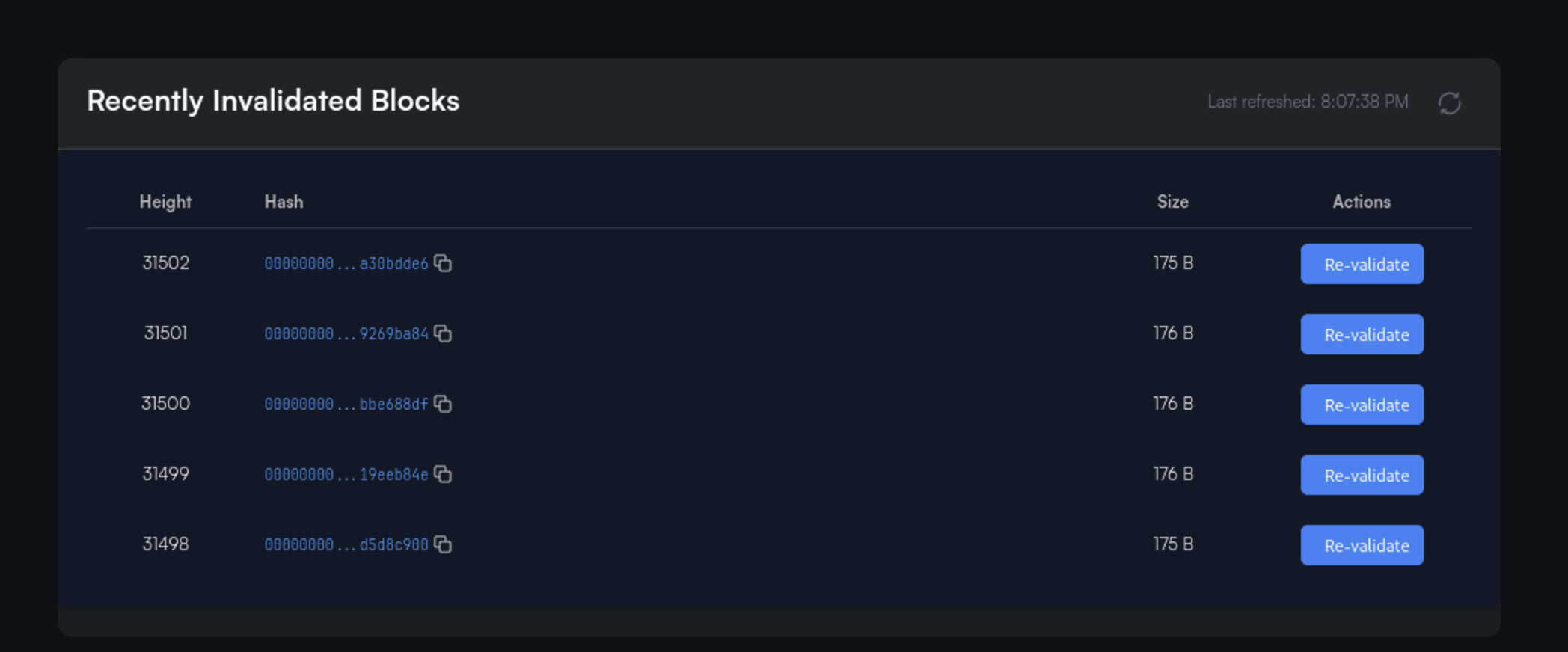

Invalid Blocks List:

Table showing last 5 invalidated blocks
Columns: Height, Hash (link to viewer), Size
Quick re-validate button for each block

Peer Reputation Management

Reset Peer Reputations:

Reset all peer reputation scores to neutral (50.0)
Clears all interaction metrics
Useful for fresh start after network issues

2.8. WebSocket Test

The WebSocket test page (/wstest) provides connection testing tools:

Configurable WebSocket URL
Connect/Disconnect controls
Real-time message capture
Connection log with timestamps
Raw message display
Message count tracking
First node_status logging

3. Technology

The dashboard is built with modern web technologies:

Framework and Language

SvelteKit: Full-stack framework for building web applications
TypeScript: Type-safe JavaScript for improved developer experience
Vite: Fast build tool and development server

UI Components

D3.js: Data visualization library for charts and graphs
ECharts: Rich interactive charting library
Custom Svelte Components: Reusable UI components in /src/lib/

State Management

Svelte Stores: Reactive state management
- authStore: Authentication state
- listenerStore: WebSocket event listeners
- Node and P2P data stores

API Integration

REST API: HTTP endpoints for data retrieval
WebSocket: Real-time updates for blockchain events
i18n: Internationalization support via svelte-i18next

Build Configuration

Static Adapter: Builds as single-page application with index.html fallback
Source Maps: Enabled for debugging
Path Aliases: $internal for project-specific components

4. Running the Dashboard

Development Mode

# Install dependencies
npm install --prefix ./ui/dashboard

# Run development server
npm run dev --prefix ./ui/dashboard

The dashboard will be available at http://localhost:5173 by default.

Production Build

# Build for production
npm run build --prefix ./ui/dashboard

# The built files will be in ui/dashboard/build/

With Teranode

The dashboard is typically run alongside Teranode using make targets:

# Run both Teranode and dashboard in development mode
make dev

# Run only the dashboard
make dev-dashboard

5. Configuration

Environment Variables

The dashboard uses environment variables for configuration:

Asset Server URL: URL of the Teranode Asset Server for API calls
WebSocket URL: WebSocket endpoint for live updates

API Endpoints

The dashboard connects to these Asset Server endpoints:

Authentication:

POST /api/auth/login: Login
GET /api/auth/check: Session validation
POST /api/auth/logout: Logout

FSM Management:

GET /fsm/state: Get current state
GET /fsm/events: Get available events
POST /fsm/state: Send custom event
POST /fsm/run: Start blockchain
POST /fsm/idle: Stop blockchain
POST /fsm/catchup: Enter catchup mode
POST /fsm/legacysync: Enter legacy sync mode

Block Operations:

GET /blockstats: Block statistics
GET /blockgraphdata/{period}: Graph data
GET /lastblocks: Recent blocks
GET /blocks: Paginated blocks
GET /block/{hash}/json: Block details
GET /block/{hash}/subtrees/json: Block subtrees
GET /block/{hash}/forks: Fork tree
POST /block/invalidate: Invalidate block
POST /block/revalidate: Revalidate block
GET /blocks/invalid: Get invalid blocks

Transaction and UTXO:

GET /tx/{hash}/json: Transaction details
GET /utxo/{hash}:{index}/json: UTXO details
GET /merkle_proof/{hash}/json: Merkle proof (BUMP format)
GET /search: Search functionality

Subtrees:

GET /subtree/{hash}/json: Subtree details
GET /subtree/{hash}/txs/json: Subtree transactions

Peer Management:

GET /api/p2p/peers: Peer registry
POST /api/p2p/reset-reputation: Reset peer reputations
GET /api/catchup/status: Catchup progress

Blockchain:

GET /api/blockchain/locator: Block locator for consensus

Asset Server Documentation - Backend API server
P2P Service Documentation - P2P networking
Peer Registry and Reputation System - Peer management details
Block Validation Service - Catchup and sync information
Blockchain Service - FSM and state management

Appendix: Project Structure

ui/dashboard/
├── src/
│   ├── lib/              # Shared library components
│   ├── internal/         # Project-specific components
│   └── routes/           # SvelteKit file-based routing
│       ├── admin/        # Admin operations page
│       ├── ancestors/    # Common ancestors page
│       ├── api/          # API route handlers
│       ├── forks/        # Fork visualization page
│       ├── home/         # Home/overview page
│       ├── login/        # Authentication page
│       ├── network/      # Network status page
│       ├── p2p/          # P2P message monitor page
│       ├── peers/        # Peer management page
│       ├── viewer/       # Block/transaction/UTXO viewer
│       └── wstest/       # WebSocket testing
├── static/               # Static assets
└── package.json          # Dependencies and scripts

Teranode Dashboard

Index

1. Overview

2. Features

2.1. Home

2.2. Blockchain Viewer

2.3. P2P Message Monitor

2.4. Peers

2.5. Network Status

2.6. Forks

2.7. Admin

FSM (Finite State Machine) Management

Block Invalidation and Revalidation

Peer Reputation Management

2.8. WebSocket Test

3. Technology

Framework and Language

UI Components

State Management

API Integration

Build Configuration

4. Running the Dashboard

Development Mode

Production Build

With Teranode

5. Configuration

Environment Variables

API Endpoints

6. Related Documentation

Appendix: Project Structure
