AWS POC Setup

Teranode - POC Environment

1. Teranode AWS Setup

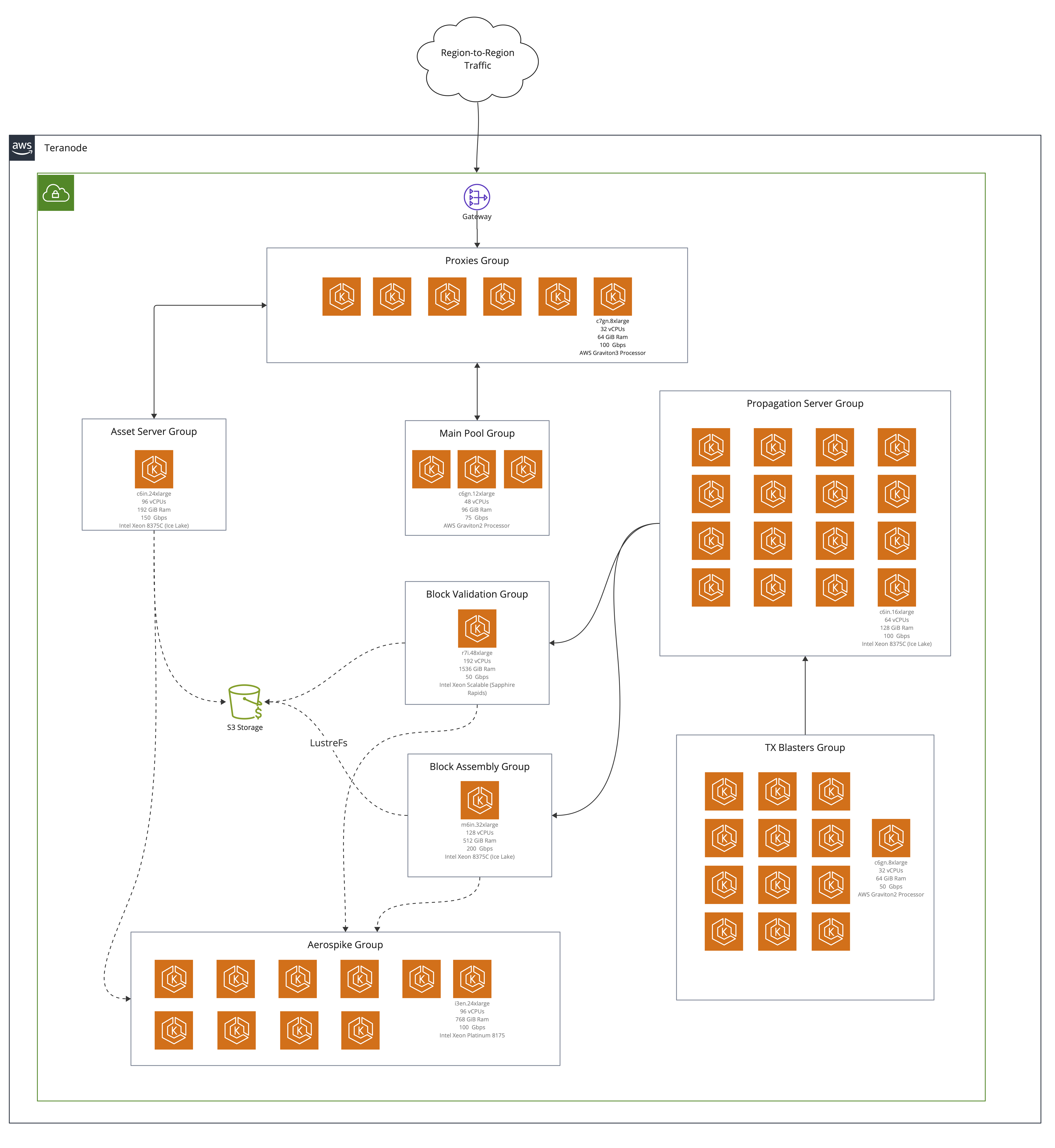

AWS - POC - Setup.png

On February 2024, the BSV team started a multi-month test exercise (the proof-of-concepts or POC). The objective of the exercise is to prove that Teranode BSV can scale to process millions of transactions per second.

For the purpose of this test, Amazon AWS was chosen as the cloud server provider. Three (3) nodes were created in 3 separate AWS regions. Each node is composed of a number of server instances. The purpose of this document is to describe the setup of each node.

2. Instance Details

The table below provides a summary of the server groups, the number of instances per group, and their technical specification.

Instance Group Instances Instance Type vCPUs Memory (GiB) Network (Gbps) Processor
Asset-sm 1 c6in.24xlarge 96 192 150 Intel Xeon 8375C (Ice Lake)
Block Assembly 1 m6in.32xlarge 128 512 200 Intel Xeon 8375C (Ice Lake)
Block Validation 1 r7i.48xlarge 192 1536 50 Intel Xeon Scalable (Sapphire Rapids)
Main Pool 3 c6gn.12xlarge 48 96 75 AWS Graviton2 Processor
Propagation Servers 16 c6in.16xlarge 64 128 100 Intel Xeon 8375C (Ice Lake)
Proxies 6 c7gn.8xlarge 32 64 100 AWS Graviton3 Processor
TX Blasters 13 c6gn.8xlarge 32 64 50 AWS Graviton2 Processor
Aerospike 10 i3en.24xlarge 96 768 100 Intel Xeon Platinum 8175

AWS EKS (Kubernetes) is used to run services in all instances. Aerospike has been run in and out of Kubernetes as part of the test exercise.

Please note that exact instance count under the Main Pool, Propagation Servers, Proxies, TX Blaster and Aerospike groups can vary during the test.

Additionally, a Teranode node can have a number of other servers and containers related to secondary services, such as monitoring (prometheus, datadog). Such secondary instances are out of the scope of this document.

3. Instance Group Definitions

Here's a structured table summarizing the instance groups, their descriptions, and purposes based on the provided details:

Instance Group Description Purpose
Proxies Ingress Proxy Servers Managing region-to-region ingress traffic with Traefik k8s services.
Asset-sm Asset (Small Instance) Hosting the Asset Server Teranode microservice.
Block Assembly Block Assembly Running the Block Assembly Teranode microservice.
Block Validation Block Validation Running the Block Validation Teranode microservice.
Main Pool Overlay Services Running the p2p, coinbase, blockchain, postgres, faucet, and other microservices.
Propagation Servers Propagation Servers A pool of Propagation Teranode microservices.
TX Blasters TX Blasters A pool of TX Blaster Teranode microservices.
Aerospike Aerospike A cluster of Aerospike NoSQL DB services.

4. Storage

  • AWS S3 - Configured to work with Lustre filesystem, shared across services, and used for Subtrees and TX data storage.
  • Aerospike - Used for UTXO and TX Meta data storage.
  • Postgresql - Within the Main Pool instance group, an instance of Postgres is run. The Blockchain service stores the blockchain data in postgres.

5. Performance Metrics

In the context of our AWS-based infrastructure, the primary consideration for specifying instance types has been to meet the high network bandwidth requirements essential for the Teranode services. This approach was adopted following the identification of network bandwidth as a critical bottleneck in previous discovery phases.

However, the services are not fully utilizing the allocated resources in terms of CPU utilization, memory utilization, and disk I/O. There is excess capacity in these areas which may present future opportunities for cost optimization or reallocation of resources to better match actual usage patterns.

6. AWS Kubernetes Configuration Notes

When deploying Teranode on AWS with Kubernetes, several configuration files in the deploy/kubernetes/ directory require AWS-specific customization. The default configurations are designed for local development and must be adapted for AWS EKS deployments.

Storage Configuration

⚠️ Critical: The following storage configurations must be customized for your AWS environment:

Storage Classes:

  • Default configurations may use local storage classes
  • AWS requires specific StorageClass definitions (gp2, gp3, or efs-sc-dynamic)
  • Shared storage (for multiple pods) requires AWS EFS with the EFS CSI driver

Required Changes:

  1. Persistent Volumes and Claims - Must specify appropriate storageClassName:
  2. deploy/kubernetes/postgres/postgres-pvc.yaml - Add storageClassName: gp2

  3. deploy/kubernetes/aerospike/aerospike-claim1-persistentvolumeclaim.yaml - Add storageClassName: efs-sc-dynamic

  4. StatefulSets - Must include volumeClaimTemplates with AWS storage classes:

  5. deploy/kubernetes/postgres/postgres.yaml - Add volumeClaimTemplates with storageClassName: gp2 and subPath: pgdata

  6. deploy/kubernetes/aerospike/aerospike-statefulset.yaml - Add volumeClaimTemplates with storageClassName: gp2

  7. NFS/EFS Configuration - For shared storage across pods:

  8. deploy/kubernetes/nfs/pv.yaml - Replace NFS driver with EFS CSI driver (efs.csi.aws.com) and configure volumeHandle with your EFS filesystem ID

  9. Teranode Operator CR - Must include storage configuration:

  10. deploy/kubernetes/teranode/teranode-cr.yaml - Add volumeClaimTemplates with storageClassName: efs-sc-dynamic under each service's deploymentOverrides

Image Pull Policy

⚠️ Important: Default configurations may have imagePullPolicy: Never which is only suitable for local development with locally-built images.

For AWS deployments:

  • Change to imagePullPolicy: IfNotPresent (recommended) - pulls only if image not present locally
  • Or use imagePullPolicy: Always - always pulls latest image (slower but ensures freshness)

Files affected:

  • deploy/kubernetes/teranode/teranode-cr.yaml - Update all service deploymentOverrides

Environment-Specific Considerations

Storage Performance:

  • gp2: General purpose SSD, baseline IOPS (3 IOPS/GB)
  • gp3: Newer general purpose SSD, better performance/cost ratio
  • EFS: Required for ReadWriteMany access mode (shared across pods)

Volume Paths:

  • Ensure volume mount paths match your application's expected data directories
  • PostgreSQL requires subPath: pgdata to avoid permission issues with lost+found
  • Review all volume mounts in the configmap (e.g., /data/teranode-operator/external)

Cost Optimization:

  • EFS can be expensive for high-throughput workloads
  • Consider using local instance storage (ephemeral) for non-critical data
  • Monitor EFS usage and adjust performance mode as needed

Testing Checklist

Before deploying to AWS, verify:

  • All PVCs specify appropriate AWS storage classes
  • StatefulSets include volumeClaimTemplates with correct storage classes
  • EFS filesystem is created and volumeHandle is configured
  • Image pull policies are set to IfNotPresent or Always
  • Volume mount paths match application expectations
  • PostgreSQL includes subPath configuration
  • ConfigMap paths use absolute paths (e.g., file:///data not file://./data)

For detailed Kubernetes deployment instructions, see the Kubernetes Installation Guide.
