Daemon Reference

The daemon package provides core functionality for initializing and managing Teranode services. It handles service lifecycle management, configuration, and coordination between different components of the system.

Overview

The daemon is responsible for:

Starting and stopping Teranode services
Managing service dependencies and initialization order
Handling configuration and settings
Coordinating between different components
Managing stores (UTXO, transaction, block, etc.)
Health check endpoints

Besides being used for starting the Teranode services in our main application, the daemon package can also be used in tests to run Teranode instances with different configurations.

Core Components

Daemon Structure

type Daemon struct {
    Ctx                context.Context
    ServiceManager     *servicemanager.ServiceManager
    doneCh             chan struct{}
    // ... additional fields for internal state management
}

The Daemon struct contains key fields for lifecycle management:

Ctx: Context for the daemon instance
ServiceManager: Manages all running services
doneCh: Channel for shutdown coordination
Additional unexported fields manage internal state, stores, and synchronization

Main Functions

New(opts ...Option)

Creates a new Daemon instance with optional configuration:

func New(opts ...Option) *Daemon

Functional options can be used to configure the daemon during initialization (e.g., custom logger factory, external services). See daemon_options.go for available options.

Start(logger, args, appSettings, readyChannel...)

Starts the daemon and initializes services based on configuration:

func (d *Daemon) Start(logger ulogger.Logger, args []string, appSettings *settings.Settings, readyChannel ...chan struct{})

Parameters:

logger: Logger instance for output
args: Command line arguments for service selection (e.g., "-all=0", "-blockchain=1")
appSettings: Configuration settings object
readyChannel: Optional variadic channel to signal when initialization is complete

Stop(skipTracerShutdown...)

Gracefully shuts down the daemon and all running services:

func (d *Daemon) Stop(skipTracerShutdown ...bool) error

Parameters:

skipTracerShutdown: Optional boolean to skip tracer shutdown (defaults to false)

AddExternalService(name, initFunc)

Registers an external service to be initialized and managed by the daemon:

func (d *Daemon) AddExternalService(name string, initFunc func() (servicemanager.Service, error))

Parameters:

name: Name of the service for identification
initFunc: Function that initializes and returns the service instance

This method allows external packages to register their services with the daemon before calling Start(). The external services will be initialized and managed alongside built-in services.

Service Management

Service Initialization

Services are initialized based on command-line flags or configuration settings. Each service can be enabled/disabled using:

Command line: -servicename=1 or -servicename=0
Global disable: -all=0 disables all services unless explicitly enabled

Available Services

Alert
Asset
Blockchain
BlockAssembly
BlockPersister
BlockValidation
Legacy
P2P
Propagation
RPC
SubtreeValidation
UTXOPersister
Validator

Health Checks

The daemon provides HTTP endpoints for health monitoring:

/health/readiness: Readiness check
/health/liveness: Liveness check
/health: Legacy endpoint (deprecated, redirects to readiness)
Address configurable via HealthCheckHTTPListenAddress setting (defaults to port 8000)

Service Initialization Flow

Startup Sequence

When the daemon starts, it initializes services in the following specific order:

Blockchain - Core blockchain state management (FSM)
P2P - Peer-to-peer networking
Asset - HTTP/WebSocket API server
RPC - JSON-RPC server
Alert - Network alert system
BlockPersister - Block persistence
UTXOPersister - UTXO persistence
BlockAssembly - Block assembly for mining
SubtreeValidation - UTXO subtree validation
BlockValidation - Block validation
Validator - Transaction validation (if running as separate service)
Propagation - Transaction propagation
Legacy - Legacy Bitcoin protocol support
External Services - Any services registered via AddExternalService()

This order ensures dependencies are available when each service initializes.

Service Dependencies and Deployment Models

Many services have dependencies on other services. For example, the Propagation service depends on the Validator service.

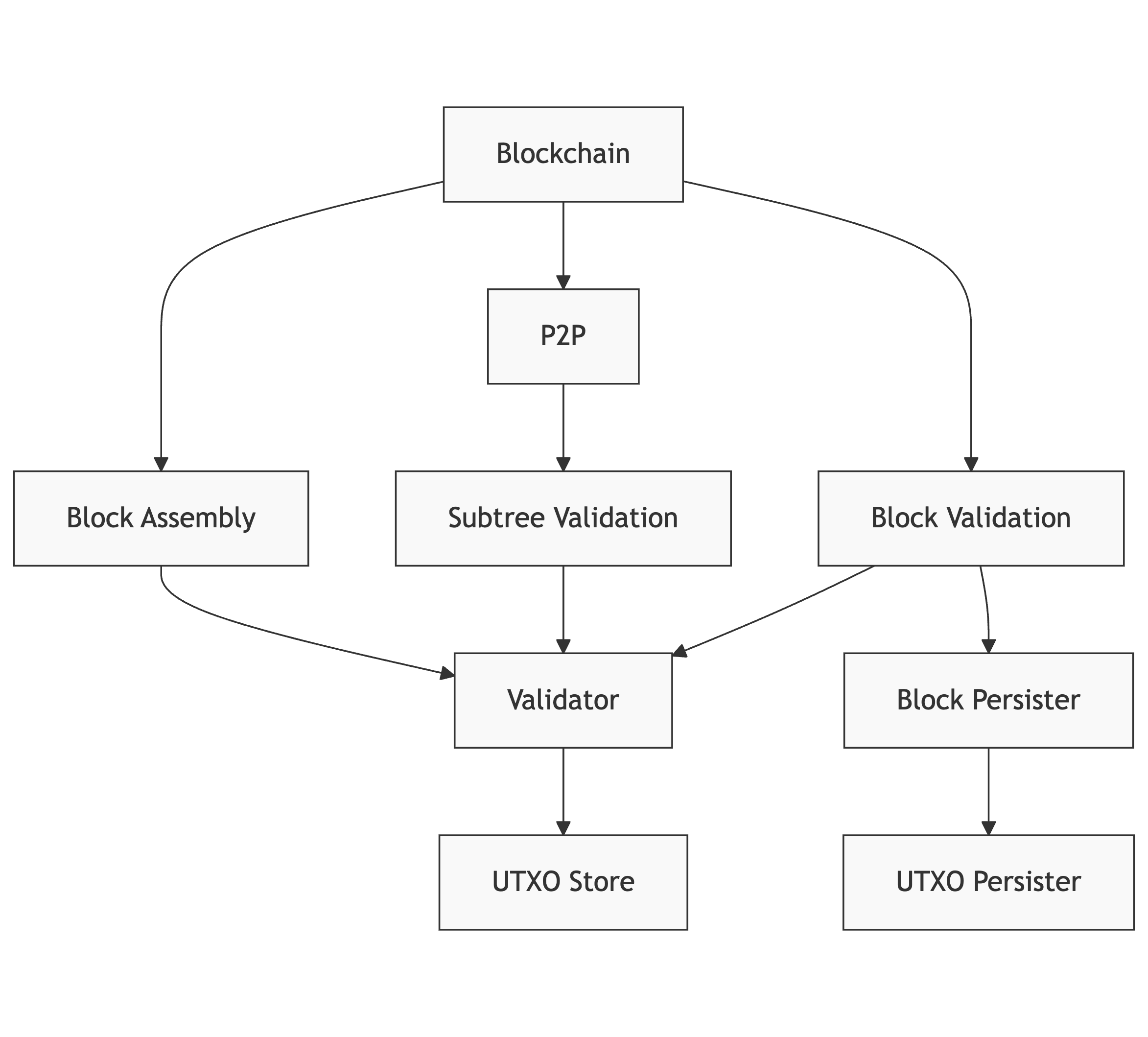

Service Dependency Overview

Note: This diagram shows logical dependencies. The actual implementation may use different communication methods (direct calls, gRPC, or Kafka) depending on configuration.

Validator Service Deployment

The Validator can be deployed in two distinct ways, controlled by the Validator.UseLocalValidator setting:

Local Validator (recommended for production):

// When Validator.UseLocalValidator=true
mainValidatorClient, err = validator.New(ctx,
    logger,
    tSettings,
    utxoStore,
    txMetaKafkaProducerClient,
    rejectedTxKafkaProducerClient,
)

Remote Validator Service:

// When Validator.UseLocalValidator=false
mainValidatorClient, err = validator.NewClient(ctx, logger, tSettings)

The Propagation service and other services can use either deployment model:

validatorClient, err := GetValidatorClient(ctx, logger, tSettings)
if err != nil {
    return err
}

// Initialize propagation with validator dependency
sm.AddService("PropagationServer", propagation.New(
    logger.New("prop"),
    tSettings,
    txStore,
    validatorClient,
    blockchainClient,
    validatorKafkaProducerClient,
));

Service Communication Patterns

Teranode services communicate using several methods:

Direct method calls - When using local services (e.g., local validator)
gRPC - For remote service communication with bi-directional streaming support
Kafka - For asynchronous messaging and event-driven communication

Key Communication Flows

Tx Validator to Subtree Validation: Uses Kafka for transaction metadata
P2P to Subtree Validation: Uses Kafka for notifications (not gRPC)
Block Validation to Validator: For validating transactions in blocks
Propagation to Validator: Uses either direct calls (local validator) or gRPC (remote validator)

Note: The SubtreeFound gRPC method was removed from the project. All references to this method were removed from documentation. The P2P service now only notifies the subtree validation service via Kafka, not through gRPC.

Singleton Patterns

Many services and stores use singleton patterns to ensure only one instance exists. Key examples include:

// Validator client singleton
if mainValidatorClient != nil {
    return mainValidatorClient, nil
}

// UTXO store singleton
if utxoStoreInstance != nil {
    return utxoStoreInstance, nil
}

This pattern ensures consistent state across all services using these components.

Store Management

Stores Structure

The daemon uses an internal Stores struct to manage singleton instances of stores and clients:

type Stores struct {
    mainBlockPersisterStore     blob.Store
    mainBlockStore              blob.Store
    mainBlockValidationClient   blockvalidation.Interface
    mainSubtreeStore            blob.Store
    mainSubtreeValidationClient subtreevalidation.Interface
    mainTempStore               blob.Store
    mainTxStore                 blob.Store
    mainUtxoStore               utxostore.Store
    mainValidatorClient         validator.Interface
}

This struct maintains singleton instances to ensure only one instance of each store/client exists per daemon instance. All store getter methods check if an instance already exists before creating a new one.

Store Methods

The daemon's internal Stores struct provides methods to access different types of stores:

GetTxStore

func (d *Stores) GetTxStore(logger ulogger.Logger, appSettings *settings.Settings) (blob.Store, error)

Returns the transaction store instance, creating it if it doesn't exist.

GetUtxoStore

func (d *Stores) GetUtxoStore(ctx context.Context, logger ulogger.Logger, appSettings *settings.Settings) (utxostore.Store, error)

Returns the UTXO store instance, creating it if it doesn't exist.

GetBlockStore

func (d *Stores) GetBlockStore(ctx context.Context, logger ulogger.Logger, appSettings *settings.Settings) (blob.Store, error)

Returns the block store instance, creating it if it doesn't exist.

GetSubtreeStore

func (d *Stores) GetSubtreeStore(ctx context.Context, logger ulogger.Logger, appSettings *settings.Settings) (blob.Store, error)

Returns the subtree store instance, creating it if it doesn't exist.

GetBlockPersisterStore

func (d *Stores) GetBlockPersisterStore(ctx context.Context, logger ulogger.Logger, appSettings *settings.Settings) (blob.Store, error)

Returns the block persister store instance, creating it if it doesn't exist.

GetTempStore

func (d *Stores) GetTempStore(ctx context.Context, logger ulogger.Logger, appSettings *settings.Settings) (blob.Store, error)

Returns the temporary store instance, creating it if it doesn't exist. Used by the Legacy service.

GetBlockchainClient

func (d *Stores) GetBlockchainClient(ctx context.Context, logger ulogger.Logger, appSettings *settings.Settings, source string) (blockchain.ClientI, error)

Creates and returns a new blockchain client instance. Unlike other getters, this always creates a new client to maintain source information.

GetValidatorClient

func (d *Stores) GetValidatorClient(ctx context.Context, logger ulogger.Logger, appSettings *settings.Settings) (validator.Interface, error)

Returns the validator client instance. Creates either a local validator or remote client based on Validator.UseLocalValidator setting.

Cleanup

func (d *Stores) Cleanup()

Resets all singleton stores. This is particularly important for tests where stores may persist between test runs.

Profiler and Metrics

The daemon automatically initializes profiling and metrics endpoints when configured:

Profiler Endpoints

When ProfilerAddr is set, the daemon exposes pprof endpoints for profiling:

/debug/pprof/ - Profile index
/debug/pprof/cmdline - Command line arguments
/debug/pprof/profile - CPU profile
/debug/pprof/symbol - Symbol lookup
/debug/pprof/trace - Execution trace
/debug/fgprof - Full goroutine profiler (fgprof)

Metrics Endpoints

The daemon supports multiple metrics systems:

Stats Server: When StatsPrefix is set, exposes stats at http://<ProfilerAddr>/<StatsPrefix>/stats
Prometheus: When PrometheusEndpoint is set, exposes Prometheus metrics at the configured endpoint (e.g., /metrics)

All metrics are exposed on the same address as the profiler (ProfilerAddr).

Tracing

When TracingEnabled is set to true, the daemon initializes distributed tracing support using the configured tracing backend.

Configuration Options

The daemon uses a variety of configuration options to control service behavior and deployment models. Here are the key settings that affect daemon initialization and service configuration:

Service Deployment Settings

Setting	Description	Default	Impact
`Validator.UseLocalValidator`	Controls whether the validator runs as a local component (true) or as a separate service (false)	`true`	Significant performance impact; local validator is recommended for production
`Validator.GRPCListenAddress`	gRPC listen address for validator service (when running as separate service)	-	Required when UseLocalValidator is false
`BlockValidation.GRPCListenAddress`	gRPC listen address for block validation service	-	If empty, block validation service won't start
`BlockAssembly.GRPCListenAddress`	gRPC listen address for block assembly service	-	If empty, block assembly service won't start
`Propagation.GRPCListenAddress`	gRPC listen address for propagation service	-	If empty, propagation service won't start
`HealthCheckHTTPListenAddress`	HTTP listen address for health check endpoints	`:8000`	Exposed on `/health/readiness` and `/health/liveness`
`Context`	Environment context (e.g., "dev", "test", "docker", "operator")	-	Affects port prefixes and service configuration

Store Configuration

Setting	Description	Default	Impact
`UtxoStore.UtxoStore`	URL to UTXO store (e.g., "sqlite:///path", "memory:///", "aerospike://...")	-	Required for UTXO operations; affects performance significantly
`BlockChain.StoreURL`	URL to blockchain store (PostgreSQL or SQLite)	-	Required; stores block headers and chain state
`SubtreeValidation.SubtreeStore`	URL to subtree store	-	Required; controls where merkle subtrees are stored
`Block.TxStore`	URL to transaction store	-	Required; stores transaction data
`Block.BlockStore`	URL to block store	-	Required; stores full blocks
`Block.PersisterStore`	URL to block persister store	-	Used by block persister service
`Legacy.TempStore`	URL to temporary store	`file://./tmp`	Used by legacy service for temporary data

Communication Settings

Setting	Description	Default	Impact
`Kafka.Brokers`	Kafka broker addresses	-	Required for inter-service communication
`Kafka.ValidatorTxsConfig`	Kafka topic configuration for validator transactions	-	Affects how transaction data flows between services
`Validator.KafkaWorkers`	Number of Kafka workers for validator service	`100`	Affects throughput of Kafka message processing
`ClientName`	Client identifier for Kafka consumer groups	-	Ensures unique consumer group names per instance

PostgreSQL Settings

Setting	Description	Default	Impact
`PostgresCheckAddress`	PostgreSQL server address to check before starting	-	Used with `-wait_for_postgres=1` flag

Profiling and Monitoring Settings

Setting	Description	Default	Impact
`ProfilerAddr`	Address for profiler and metrics endpoints	-	If set, enables pprof and stats endpoints
`StatsPrefix`	URL prefix for stats endpoint	-	If set, enables stats server at `/<prefix>/stats`
`PrometheusEndpoint`	Endpoint path for Prometheus metrics	-	If set, exposes Prometheus metrics (e.g., `/metrics`)
`TracingEnabled`	Enable distributed tracing	`false`	Initializes tracing backend when true
`UseDatadogProfiler`	Enable Datadog profiler	`false`	Starts Datadog profiling when true
`LogLevel`	Logging level for all services	`info`	Controls verbosity of logs

Advanced Settings

Setting	Description	Default	Impact
`LocalTestStartFromState`	Starting state for local testing blockchain FSM	-	Can be set via `-localTestStartFromState` flag
`ChainCfgParams`	Bitcoin network parameters (mainnet, testnet, regtest)	mainnet	Determines consensus rules and network magic

Consult the individual service documentation for service-specific configuration options. The settings listed here are particularly important for daemon initialization and service communication.

Testing Support

The daemon package is designed to support comprehensive testing scenarios:

Can be initialized with different store implementations (SQLite, in-memory, etc.)
Supports running complete Teranode instances in tests
Allows step-by-step debugging of services
Facilitates testing complex scenarios like double-spend detection

Example test initialization:

func NewDoubleSpendTester(t *testing.T) *DoubleSpendTester {
    ctx, cancel := context.WithCancel(context.Background())

    logger := ulogger.NewErrorTestLogger(t, cancel)

    // Delete the sqlite db at the beginning of the test
    _ = os.RemoveAll("data")

    persistentStore, err := url.Parse("sqlite:///test")
    require.NoError(t, err)

    memoryStore, err := url.Parse("memory:///")
    require.NoError(t, err)

    if !isKafkaRunning() {
        kafkaContainer, err := testkafka.RunTestContainer(ctx)
        require.NoError(t, err)

        t.Cleanup(func() {
            _ = kafkaContainer.CleanUp()
        })

        gocore.Config().Set("KAFKA_PORT", strconv.Itoa(kafkaContainer.KafkaPort))
    }

    tSettings := settings.NewSettings() // This reads gocore.Config and applies sensible defaults

    // Override with test settings...
    tSettings.SubtreeValidation.SubtreeStore = memoryStore
    tSettings.BlockChain.StoreURL = persistentStore
    tSettings.UtxoStore.UtxoStore = persistentStore
    tSettings.ChainCfgParams = &chaincfg.RegressionNetParams
    tSettings.Asset.CentrifugeDisable = true

    readyCh := make(chan struct{})

    d := daemon.New()

    go d.Start(logger, []string{
        "-all=0",
        "-blockchain=1",
        "-subtreevalidation=1",
        "-blockvalidation=1",
        "-blockassembly=1",
        "-asset=1",
        "-propagation=1",
    }, tSettings, readyCh)

    <-readyCh

    bcClient, err := blockchain.NewClient(ctx, logger, tSettings, "test")
    require.NoError(t, err)

    baClient, err := blockassembly.NewClient(ctx, logger, tSettings)
    require.NoError(t, err)

    propagationClient, err := propagation.NewClient(ctx, logger, tSettings)
    require.NoError(t, err)

    blockValidationClient, err := blockvalidation.NewClient(ctx, logger, tSettings, "test")
    require.NoError(t, err)

    w, err := wif.DecodeWIF(tSettings.BlockAssembly.MinerWalletPrivateKeys[0])
    require.NoError(t, err)

    privKey := w.PrivKey

    subtreeStore, err := daemon.GetSubtreeStore(logger, tSettings)
    require.NoError(t, err)

    utxoStore, err := daemon.GetUtxoStore(ctx, logger, tSettings)
    require.NoError(t, err)

    return &DoubleSpendTester{
        ctx:                   ctx,
        logger:                logger,
        d:                     d,
        blockchainClient:      bcClient,
        blockAssemblyClient:   baClient,
        propagationClient:     propagationClient,
        blockValidationClient: blockValidationClient,
        privKey:               privKey,
        subtreeStore:          subtreeStore,
        utxoStore:             utxoStore,
    }
}

Additionally, using the following function:

tSettings := settings.NewSettings() // This reads gocore.Config and applies sensible defaults

will initialise settings with generic defaults, ideal for tests.

Configuration Priority

The daemon uses configuration from multiple sources in this priority order (highest to lowest):

Command line arguments (e.g., -blockchain=1, -all=0)
Environment variables (when using gocore.Config())
Configuration files (settings.conf, settings_local.conf)
Default settings (hardcoded in settings/settings.go)
